and has been designed and built to provide trouble-free
performance.

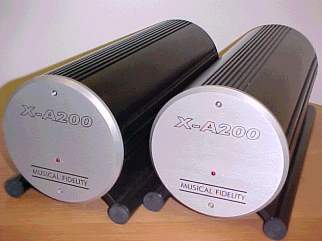

The construction values of the 430mm long cylindrical tubest are top-notch, and it looks just as attractive on the
inside of that finely presented exterior as on the outside.
It seems to have been constructed from the inside out!
At the rear resides is the power supply transformer placed,
in front of which are the smoothing capacitors and then
the amplifier circuit itself. The board is positioned
horizontally with three pairs(6) of high-current bi-polar
power transistors capable of delivering a stable and healty 30 amps along each flank. Allowing them to drive amost any speakerload (dynamic or electrostatic) without difficulty.ic).
Output power:
200 Watts RMS into 8 Ohms
400 Watts RMS into 4 Ohms
THD:
< 0.001% 20Hz-20kHz 'A' weighted
< 0.003% 20Hz-20kHz @ 1W unweighted
Frequency response: 10Hz-50kHz + 0.5dB
5Hz-80kHz + 1dB
S/N ratio: > 120 dB 'A' weighted
Dimensions: 170 x 175 x 430mm (H x W x D)
