Bart & Lisa - Twin Tesla coil Half Wave system
 |

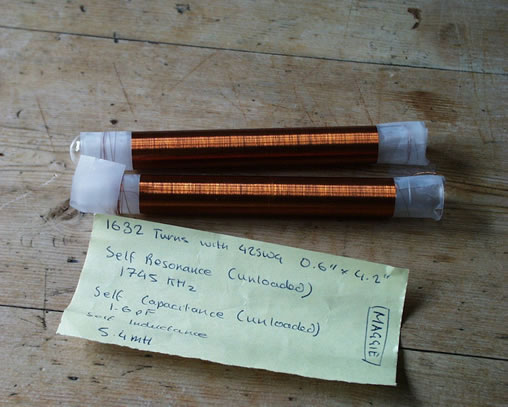

My Two coils wound on their respective formers. There are 1600 turns of 44AWG (42SWG) wire on a 4.2" by 0.6" former - a pair of Pyrex test tubes. Click the image ofr an enlarged view and to see the factsheet below. |
 |
This is the datasheet for the coil, done on TheDesigner 3 spreadsheet by Corey Ruch... If you want it, you can download it from here. The coil specs are on the sheet. |
 |

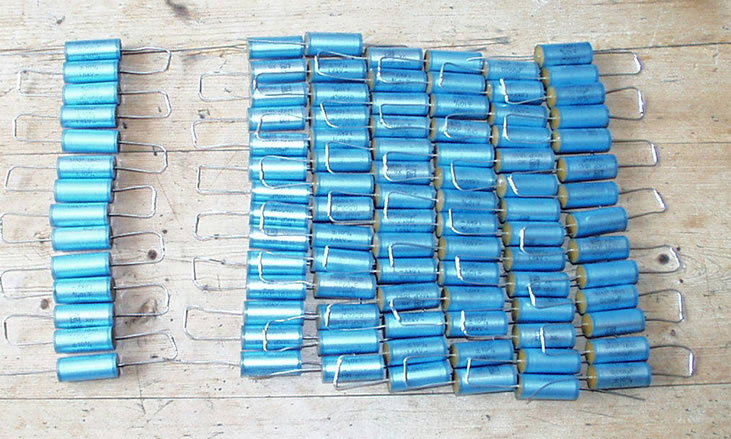

My MMC strings, before mounting and attatchment of bleeder resistors. Each string is 14*1.6KV=22.4KV, and 0.068uF/14=0.0048uF per string. I will be using two of these strings to get about 0.009uF. |
