Forecastle Deck & Poop Deck
I chose to add a couple of different lamps on this deck
primarily cause I saw this on James Cameron's
film although I can't really confirm whether these were
actually on the real Titanic.

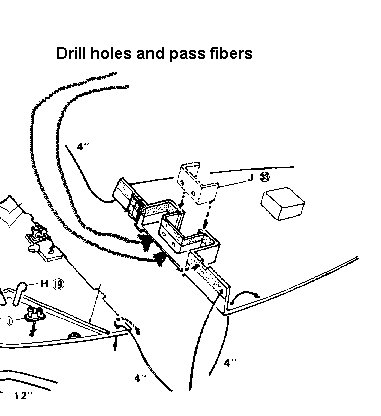

Also pass fibers underneath the Forecastle deck and fill with Ca glue. You can see where exactly on the image below. This would be on the underside of the forecastle on part J33. These holes are pre-drilled but somewhat large. This will also apply to poopdeck for part J32 as well.
Leave these fibers long cause they have to curve and practically go to mid-hull to get enough light.
The 4 holes we drilled on the main deck back at step 8
are going to be covered by these two decks
but will transfer a little light to create a nice effect.
These holes should be directly behind parts G23.

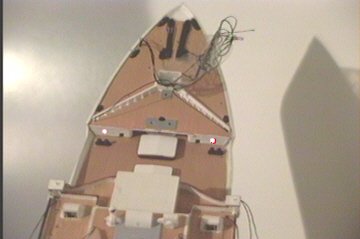

The forecastle hatch is rather special. I didn't know
what lighting I should do here but came up with a light on
each side of the hatch and two facing front. I couldn't find much research
documentation on lighting this part so I added a lamp on each side of the
hatch. Cameron's film has this and so does Cyberflix's Titanic game although
I don't know how much you can trust either.

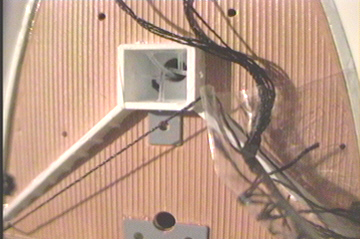

In the image below you see how I lit the hatch .
See attachment on hatch cover here
.
