IXP 200 Proximity Card Keyless Access Control Systems

The features you've been looking for in a 16 door proximity system
• Up to 2000 tagholders (upgradeable to 8000)
• Keyless entry using proximity cards, Personal Access Codes or various other technologies
• Comprehensive Windows® Software with open database event logging
• Elevator Control for up to 4 elevators and 16 floors
• Intelligent inputs and outputs for total security
• Building management features
• Graphical floorplan representation including alarm and transaction monitoring
• Integrated card printing
• Web Reports viewable from any internet enabled device
• Fully upgradeable to IXP300 Impro's 256 door system
• Your choice of ABS Plastic or metal proximity readers
• Long range systems for effortless vehicle access

...maximize your access control solution with an IXP 200 system

Features you didn't expect to find in a 16 door proximity system

IXP200 (up to) 16 DOOR ACCESS CONTROL

IXP 200 Software

the IXP 200 system includes a complete Windows® based, user friendly software suite. The software facilitates the configuration of advanced functions such as:

AUTO HARDWARE CONFIGURATION
For easy system set-up, readers report their unique identity, including model numbers, during an automatic interrogation.

DOOR MODE PATTERNS
Program doors to operate in specific modes (e.g. door open; dual tag required) during programmed times.

TIME TRIGGERED ACTIONS
Program security lights, and other pre-determined actions, to be activated on specific days and times.

EVENT TRIGGERED ACTIONS
Program specific actions to activate when certain events occur, such as the detection of an alarm input or building management sensor (e.g. light, humidity or temperature control sensors). This feature may also be used in conjunction with other security systems such as CCTV.

ACCESS GROUPS / TIMEZONES
Configure up to 64 access groups, allowing groups access to specific doors at pre-determined times. This feature is totally customizable by the user through the IXP 200 Software.

PROGRAMMABLE HOLIDAYS
Custom-program holidays applicable to the site at which the IXP 200 system is installed. The dates are treated as official holidays and the system is instructed to operate as programmed during these days.

WEB REPORTS
Access comprehensive detailed reporting from the stored audit trail on any device with internet access and a web browser, including PDA's. User-customizable filtering options enable user to pull specific reports. Detailed reports including hours worked and personal statistics can be sorted according to date, time, tag code etc.

TAG PROGRAMMING

Program tagholders into the system using the IXP 200 software Detailed information such as telephone number, address and Social Insurance Number can be saved along with a digital image of the tagholder. Each tagholder can be assigned up to 4 tags or Personal Access Codes (PAC).

GRAPHICS

An integrated building graphics module allows the user to view custom floor plans of their site. The module includes features such as alarm monitoring and acknowledgement, door transaction monitoring, on-screen remote control (e.g. door open/close) and a 'search for tagholder' feature, giving users a convenient method to perform system monitoring and control. The graphics designer allows users to import floorplans, maps and images into the software. A drag and drop feature is used to add system icons to the floorplan. Multiple level floorplans are supported.

CARD PRINTING

A user-customizable card design and printing module included with the IXP 200 software facilitates the design of badge templates to suit acrd printing requirements. The card print feature allows cards to be printed directly from the tagholder window. Multiple card templates are supported.

IXP200-2P
2 Door Proximity System Package

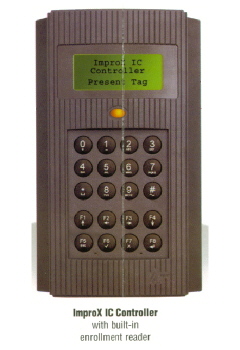

Includes 1x ImproX IC Controller with IXP 200 software, 2x ImproX DT Reader Interface Modules, 2x ABS Plastic Remote Readers (ImproX KR or MR) and 25x proximity tags (Impro ISO Credit Card or ImproX Key Fob Tag).

LIST PRICE: CALL FOR QUOTE*

* Prices vary according to your requirements.

100% Customer Satisfaction Guarantee
