Tabbed Panes of Multimedia Applet

(Click on image to view the actual resolution)

Figure 1 About Tabbed Pane

     Figure 1 depicts the About Tabbed Pane. It provides information about the people involved in this final year project as well as the development tools used.

(Click on image to view the actual resolution)

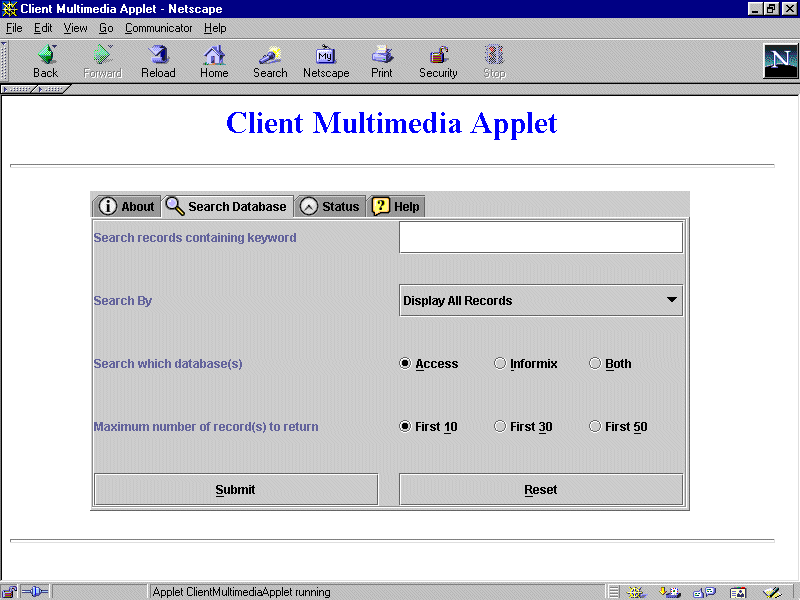

Figure 2 Search Database Tabbed Pane

     Figure 2 depicts the Search Database Tabbed Pane. It consists of the following fields:

• Search records containing keyword [Any Desired Keyword]
• Search By [Display All Records | Title | Author | Format | Caption]
• Search which database(s) [Access | Informix | Both]
• Maximum number of record(s) to return [First 10 | First 30 | First 50]
• Submit [Submit query to database(s)]
• Reset [Reset to default values]

(Click on image to view the actual resolution)

Figure 3 Status Tabbed Pane

     Figure 3 depicts the Status Tabbed Pane. It is divided into 2 partitions:

• Current Search Progress showing 2 progress bars to indicate the current progress of retrieving record(s) from the selected database(s) matching the entered keyword.
• Multimedia Byte Stream Information showing title, length of byte stream [bytes], time taken to retrieve byte stream and search database [msec] for the currently selected row of the Results Table. In addition, the data transmission rate [bits/sec] is also computed.

(Click on image to view the actual resolution)

Figure 4 Help Tabbed Pane

     Figure 4 depicts the Help Tabbed Pane. It is divided into 2 partitions:

• Applet Information showing credits / copyright information.
• Help Topics. The help files you are viewing now.
