Network Equipment

To help you with your telecom installations we also offer netequipment of excellent quality at affordable prices.

All present in stock in our warehouse in Egypt
All immediately available
All made in Germany
All according to standards of German Telekom (Deutsche Telekom)
Samples on display in our showroom : 45 Gamiat Al-Dowal Al-Arabia Str., Al-Muhandeseen.

Telekom Distribution Boxes

for indoor surface installation

VKA 85/8 (Siemens-no. S45052-Z516-A16)
VKA 85/12 (Siemens-no. S45052-Z516-A17)

Made from lacquered steel sheets

RAL 7032 grey

IP 30 protection

Including lock S45052-Z718-A8

Empty

Can be offered with terminal strips screw/screw of Egyptian manufacturer.

Junction and Distribution Boxes

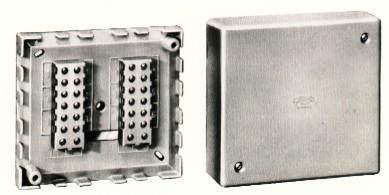

VVDi 6

(SAP-no.: 6947;

Siemens-no.: S45052-Z514-A1;
KNo.: 731651220-3)

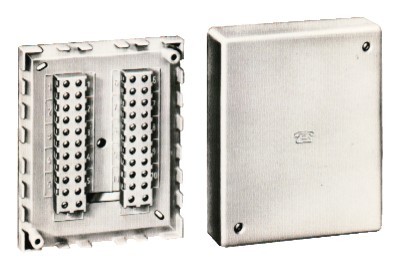

VVDi 10

(SAP-no.: 6948;

Siemens-no.: S45052-Z514-A2;
KNo.: 731651240-8)

Suitable for installation in dry rooms on the surface.

Knockouts for cables or jumping wires and for mounting the distribution box on the wall assure a quick and simple installation.

Colour: grey

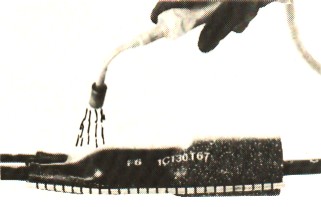

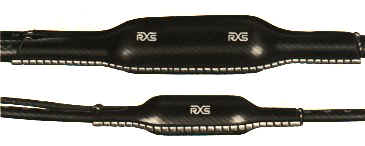

Heat Shrinkable Clousures

Different sizes
For cables from 10-600 pairs (see table)

type	no. of pairs for cable diameter
type	0.4 mm	0.6 mm	0.8 mm
1/6	30	20	10
2/6	100	50	30
3/6	150	100	70
4/6	200	200	150
5/6	400	300	200
6/6	600	500	300

LSA-PLUS Component

LSA-PLUS Component

LSA-PLUS Components

The LSA-PLUS components permit easy and quick earthing, shielding and connecting of the cable leads without soldering, wire-stripping or the use of screws.

Self-sealing, knock-out cable entries and self adjusting cable fastening for strain relief make work easier.

Eal (Aale, Bandat)

250 m, 300 m, custom size
diameter: 11 mm, fiberglass

Jumperwire

0.4 mm, 0.5 mm

different colours

Cables

telephone cables, 1 - 200 pairs
coaxial, 50 Ohm + 75 Ohm
