Siemens Hicom 150 E & Optiset family in Egypt

Hicom 150 E & Optiset family

SIEMENS Germany is not only - as usual - offering you the newest international standards in communication technology, but is also giving you the opportunity to upgrade your business
communication step by step.

Hicom 150 E supports from 2 to 380 users and is thus the right solution for medium sized businesses. Depending on Your communication needs you have the choice between the server models: OfficeCom and OfficePro.

A well reflected expansion system allows us to custom tailor your switch exactly for you. It will work with your ordinary analogue trunk line and telephone sets. But it will also support ISDN technology, multimedia conferencing, and video as well as the standard computer/telephony interfaces as TAPI, CAPI and CSTA.
So your switch is ready for the future anytime you desire.

Of course you can also take advantage of the excellent SIEMENS telephone sets of the Optiset E family, who have been especially designed to help you get the greatest profit out of Your SIEMENS switch.

Hicom 150 E OfficeCom
	Configuration Analog station (a/b) max. 4 and Digital Station (U_PO/E) max. 48 (Extension > 48 digital stations via optiset E phone adapter - max. 122 ports) or Analog Station (a/b) max. 84 and Digital Station (U_PO/E) max. 8 Data terminal max. 50 Trunk connections (loop start, ISDN) and/or nailed connections (digital) max. 30 channels. Mixed configurations possible on the trunk side with analogue (loop start) and ISDN ports. Line types S₀, S_2M, Loop start Cordless Hicom cordless EM (from 1/99) Colour of housing warm grey Dimensions H x W x D 450 x 460 x 200 (in mm) Weight approx. 8.0 kg fully equipped Software IM-Version 1.0 Power supply The systems are designed for mains connection as standard. An optional un-interruptible power supply unit (UPS) bridges power failures. Nominal input voltage 115/230 V Nominal frequence 50/60 HZ Supply voltage -48 Environmental/operating conditions Temperature +5 °C to +40 °C Relative humidity 5 - 85 % Ranges Up to 300 m between Hicom 150 E and the optiset E telephone. Approx. 1000 m with plug-in power unit, depending on the line network. Between networked Hicom systems on company premises: S₀ nailed connection: approx. 1000 m S_2M nailed connection: up to 250 m, depending on the cable used
Hicom 150 E OfficePro
	Configuration Analog station (a/b) and/or Digital Station (U_PO/E) max. 250 Data terminal max. 50 Trunk connections (loop start, ISDN) and/or nailed connections (analog/digital) max. 120 channels. Mixed configurations possible on the trunk side with analogue (loop start), E&M and ISDN ports. Line types S₀, S_2M, Loop start, E&M Cordless Hicom cordless 150 E, Hicom cordless EM (from 10/98) Colour of housing ergo grey Dimensions H x W x D 490 x 410 x 390 (in mm) Weight approx. 22 kg fully equipped Software IM-Version 1.0 Power supply The systems are designed for mains connection as standard. An optional un-interruptible power supply unit (UPS) bridges power failures. Nominal input voltage 115/230 V Nominal frequence 50/60 HZ Supply voltage -48 Environmental/operating conditions Temperature +5 °C to +40 °C Relative humidity 5 - 85 % Ranges Up to 300 m between Hicom 150 E and the optiset E telephone. Approx. 1000 m with plug-in power unit, depending on the line network. Between networked Hicom systems on company premises: S₀ nailed connection: approx. 1000 m S_2M nailed connection: up to 250 m, depending on the cable used
Optiset E basic
	8 Feature keys and LEDs Open listening 1 adapter plug-in position.

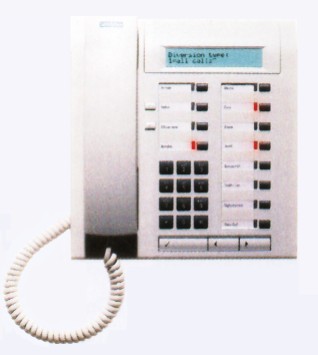

Optiset E standard
	12 feature keys and LEDs 3 menu keys (Yes, Return and Continue keys for interactive user prompting) Handsfree talking, open listening Alphanumeric LCD display with two 24-character lines for interactive user prompts, information and features.
Optiset E conference
	12 feature keys and LEDs 3 menu keys (Yes, Return and Continue keys for interactive user prompting) Open listening 2 adapter plug-in positions Alphanumeric LCD display with two 24-character lines for interactive user prompts, information and features.

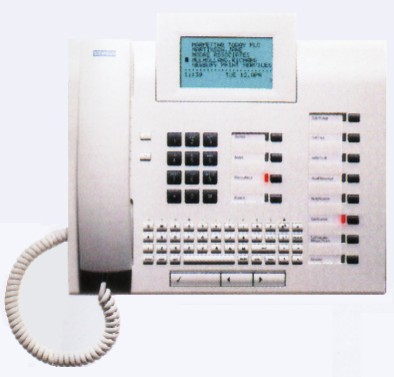

Optiset E memory
	12 feature keys and LEDs 3 menu keys (Yes, Return and Continue keys for interactive user prompting) Handsfree talking, open listening 2 adapter plug-in positions Alphanumeric keypad Electronic notebook with memory for approx. 300 entries (names, addresses, telephone nubers, etc.) Alphanumeric LCD display with eight 24-character lines; lines 1 to 6 for electronic notebook function (ENB), lines 7 and 8 for interactive user prompts, information and features.
System Configuration
The Hicom E 150 family, is compatable with various types of terminals whether analog or digital or ISDN telephone sets, computers, faxes, door phones, Hicom cordless and radio base station. Overview
