| Psychoblade's Parts and Designs |
 |
 |
 |

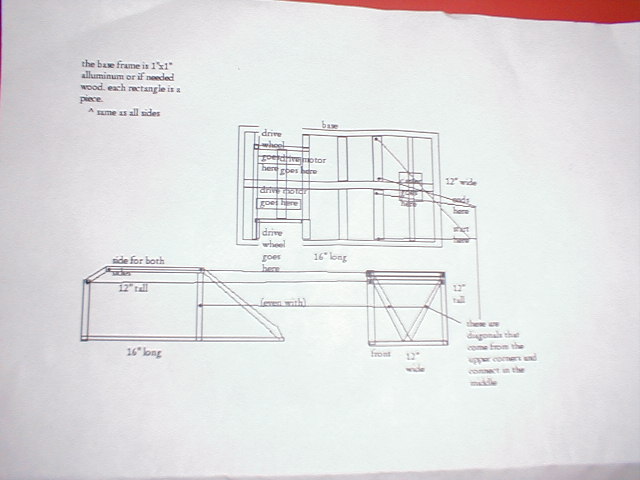

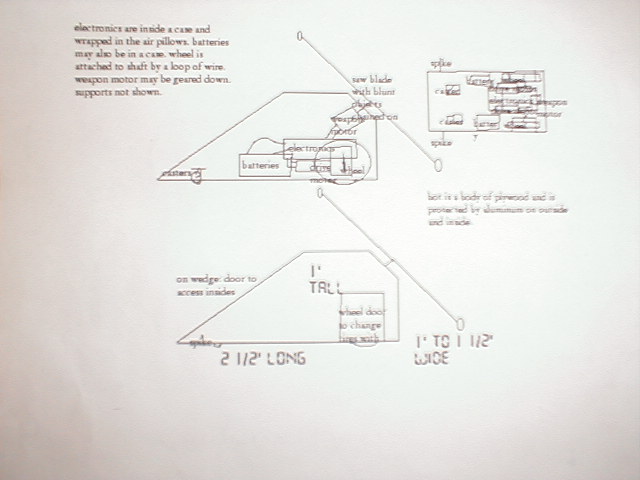

| These are the parts for Psychoblade. This is the design of Psychoblade. There have been small changes to the placement of parts. This is the frame design for Psychoblade. There have been small changes to the design. |
 |
 |
| 1. Body and frame: 1 welded 1"x1" 1/8" thick square steel tubing, misc. sizes of 3/8" thick plywood, glue, nails, misc. nuts, bolts, washers, and screws 2. Drive train: 2 NPC-28148 motors, 2 6"dia plastic lawnmower wheels, 2 2"wheeldia office chair casters, misc. washers, misc. pieces of plywood and aluminum for supports, misc bolts, nuts, and washers 3. Power: 2 YUASA 12v 7.0ah sealed lead acid batteries, 1 Xtreme Plus 12v 5.0ah sealed lead acid battery, 2 heavy duty toggle switches with rubber covers, 10 gauge wire, misc. wire connectors, fuse holder with 30 amp auto resetting circuit breakers (breakers came with speed controllers), Battery Tender Junior battery charger 4. Weapon: 1 12v. 2000 rpm pancake type motor, 1 5" die cast zinc pulley, 1 2.05" Uerathane pulley 5. Electronics: 1 Ohmark Elevon Mixer Mk1.0, 1 Futaba Skysport 4 channel at 75MHz., 2 Innovation First 24v. Victor 883 (for use with standard radio systems) speed controllers 6. Other: thin foamlike packaging material for cushoning electronics and batteries, flat black Rustoleum coating on frame, 4 latches for battery box cover |
