#1
2000 Mercury Cougar side marker lamps
F8RZ-13368-AA Lamp Side 064843
|
 |
#2

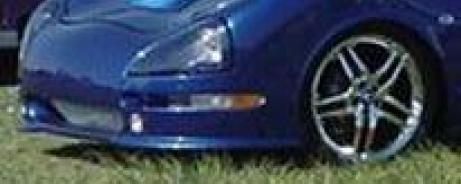

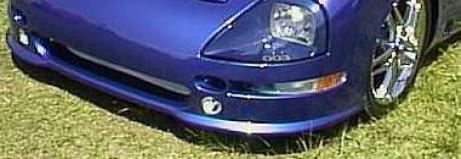

Where did Gary get those lower lights from?
And that mesh in the front hole is great too.
|
|
#3

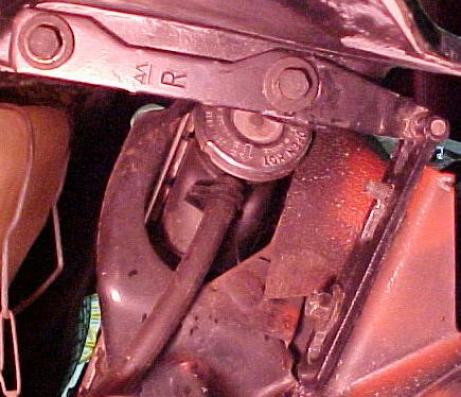

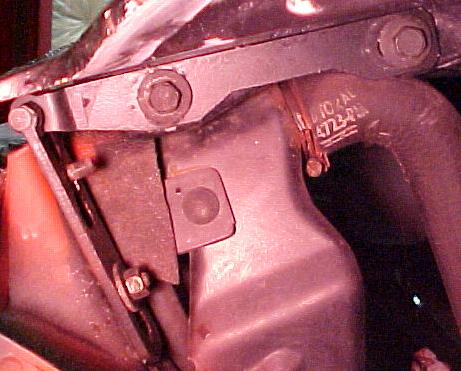

Careful to not put in the hood hinges upside down. The bottom one
is correct.
(12/15/02)
|
|
#4
Raise the front of the front clip with washers to adjust the gap with the
door.

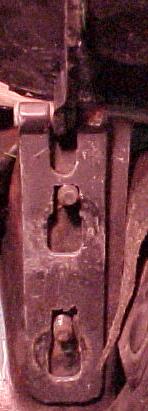

Then, if you need to, lower the hood by cutting
notches in the hinge. And you can notch the hinge to move the hood forward.
(12/15/02)
|
|
#5

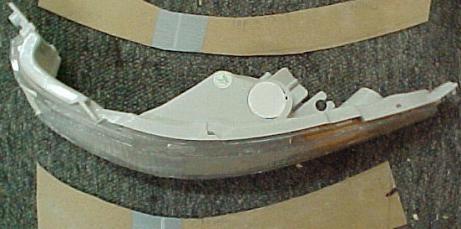

I made cardboard templates of the parking light (top & bottom)
to help guide me when cutting out the openning.
These lights come with the kit. They are Ford Probe 93-97,
Park/Side Marker GT/SE Model.
(4/12/02)
|
 |
#6

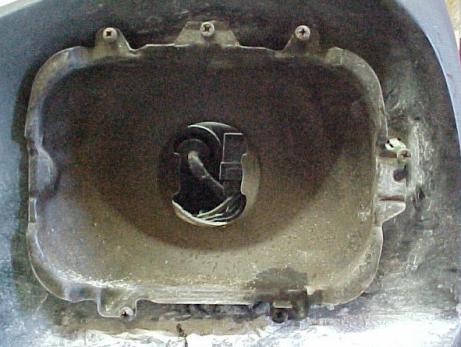

The inside tab (on the side toward the hood)
must be cut off the headlight case.
Dont assume the adjustment screws plastic casing goes in the
place marked in the fiberglass. You can see in the picture
that it missed. I had to slot the hole and 'glass in the plastic
piece.
(4/12/02)
|
 |
#7

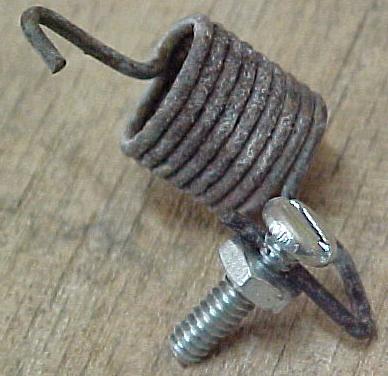

A screw with a hole drilled in it holds the spring back to keep tension
on the headlight case.
(4/15/02)
|
 |
#8

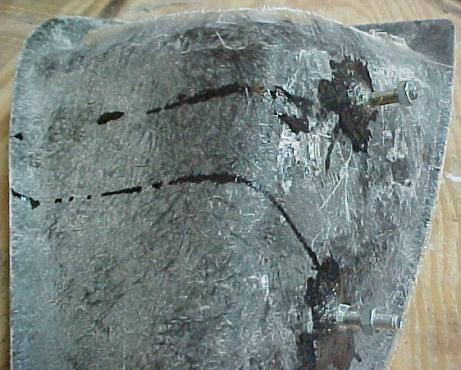

Bolts 'glassed onto the bottom of the headlight surround.
(4/13/02)
|
 |
#9
The hood would not sit flat, so i got hood pins SUM-G3870 from Summit
Racing. I dont use the Fiero latch so i dont need to slam the hood.
I HAD STORED THE HOOD SIDEWAYS SO IT WARPED. ONCE SITTING FLAT ON THE
CAR FOR A WHILE IT DIDNT NEED HOOD PINS. Want to buy some hood pins?
[pic of hood pins]
|
|
#10
I've come up with a different way to mount the headlights which i hope
will make final fit and mantainence easier. pic to follow...
(6/26/05)
|
|
