Project Date: ##/##/####

Network Design Project

Network Design
Design Goal
  • Users seperated across four floors. Divided as follows:
    • 30 Users on the 2rd, 3rd and 4th Floors.
    • ~10 Users on the 9th Floor
  • Server Room and Primary Wiring Closet on 9th Floor.
  • Fiber Connections between floors.
  • CAT 5 Wiring on each floor.

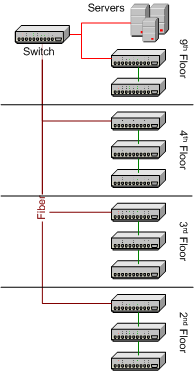

Design Implementation
  • Primary and Rollover Switch (for redundancy) located on 9th floor.
  • Servers connected directly to Switch.
  • 3 Modular Hubs on 2nd, 3rd and 4th floors (3 hubs per floor).
  • 2 Modular Hubs on 9th floor.
  • Hubs on the same floor are connected together via a cascading cable (all three act as a single hub, but can be seperated out using management tools).
  • Two of the hubs on each floor are connected to the switch on the 9th floor (one redundant connection).
