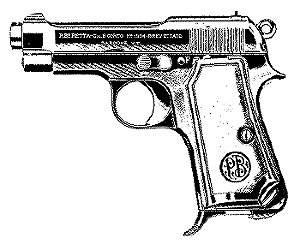

Beretta Model 1934 9 mm Short (.380 ACP) is a blow-back auto pistol introduced
in 1936.
Extremely compact, simple, reliable (the gun is composed by only 39 parts)
Model 34 was adopted by the Italian Army as its standard sidearm during the
WWII in place of oldest Glisenti 1910 pistols.
This gun was assigned mainly to officers and selected troops and used on
all battle-fronts in Africa, Europe, Russia.
34s made during the "Fascist Era" were marked not only with the year of
manufacture but with Roman numerals indicating the year of the Fascist calender
(starting from 1922 as 1st year).
34s were built after the war for some time (until the appearance of Model
1951). In the 90s Beretta manufactured with spare parts a batch of some 2000
pieces for collectors.
Model 1934 is of all-steel construction with plastic grips. The sights are
V notch rear dovetailed to slide and blade front integral with slide. The
safety lever (that also has the function of a dismounting latch) has to be
rotated 180 degrees like the Nambus. This can easily be done with the thumb
of the shooting hand.
The magazine has a heel type release and incorporates a lip that not only
aids in withdrawing the mag but in gripping the gun more firmly.
Specifications
| Calibre: | 9 mm Short (.380 ACP) |
| Length: | 150 mm |
| Width: | 30 mm |
|
Weight with empty magazine: |
660 gr |
| Barrel length: | 86 mm |
| Line of sight: | 106 mm |
| Magazine: | Single line, 7 rounds |
| Operation: | semiautomatic, blow-back |
| Hammer: | exposed, single action |
| Rifling: | R.H., 6 grooves (pitch 250 mm) |
| Sights: |
front: blade rear: V notch |
| Safeties: |
- manual hammer-block safety - half-cock position of hammer |
| Finish: |
- polished blue finish - plastic grips |
| Special features: |
- lanyard ring - a heel type magazine release |
| Vo: | 240 m/sec |
Remove magazine and make sure
that the chamber is empty. With right hand pull slide to its rearmost position;
with left thumb rotate safety lever counterclockwise until it engages the
matching recess in the slide.
Push barrel rearward until it
gets free from its seat.
Take out barrel from slide as
shown.
Firmly holding slide with right
hand, pull it to the rear some millimeters. Rotate safety lever about 90
degrees clockwise with left thumb and then slowly push slide forward. Now
recoil spring and spring guide can be removed from their seats (spring is
under tension: pay attention). Safety lever can be removed too.
No further disassembly is needed. Reassemble in reverse order.
