Stirling Engine Plans...

FIZGIG

NOW RUNING...
Plans are updated! 12/05/99

To see the updated plans at Mick's Web site click here!

     Plans now available as a zip file! Fizgig.zip

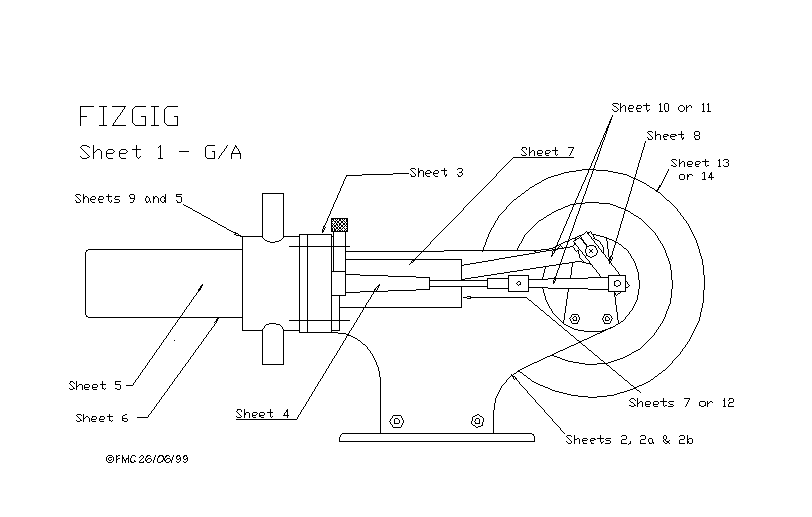

sheet1
sheet2
sheet2a

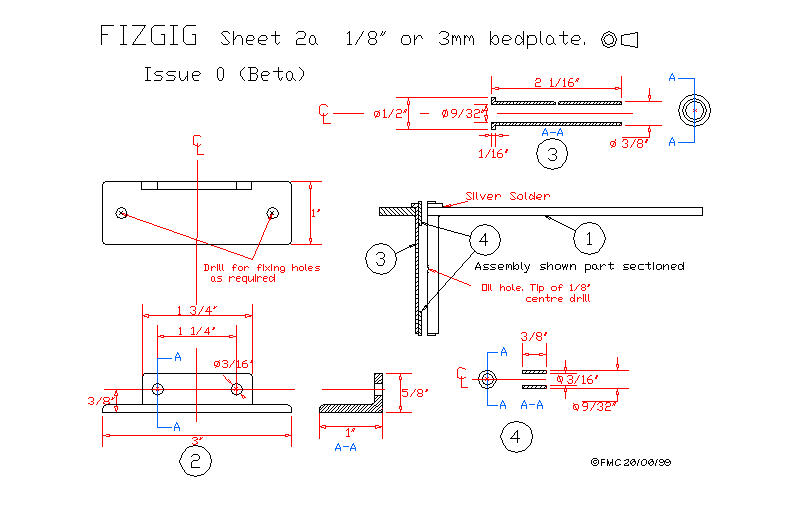

sheet2b
sheet3

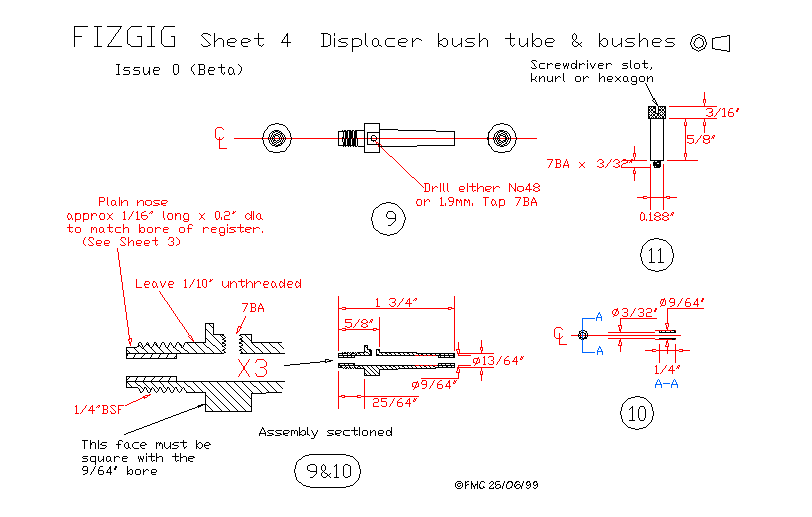

sheet4
sheet5

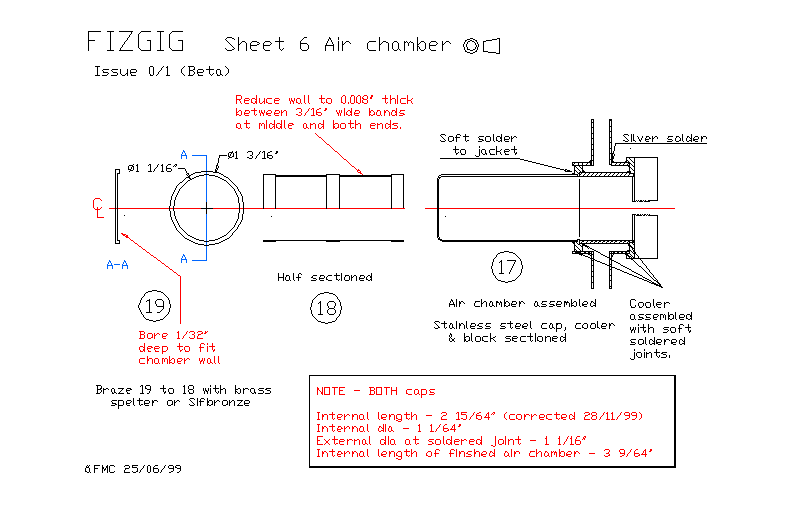

sheet6 Updated 11/30/99
sheet7
sheet8
sheet9
sheet10
sheet11
sheet12

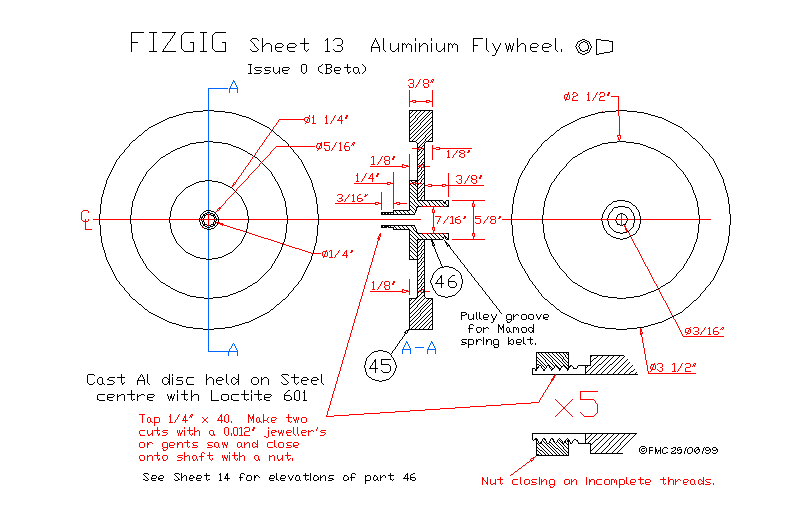

sheet13
sheet14
Materials list 1
Materials list 2

Use this set of sheets if you need them rotated 90 degrees
to make easier to print directly from your browser program.
sheet1r
sheet2r
sheet2ar
sheet2br
sheet3r
sheet4r
sheet5r
sheet6r Updated 12/05/99

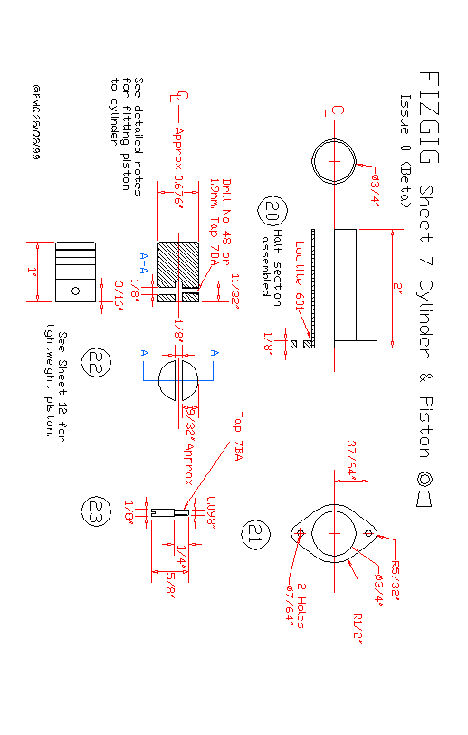

sheet7r

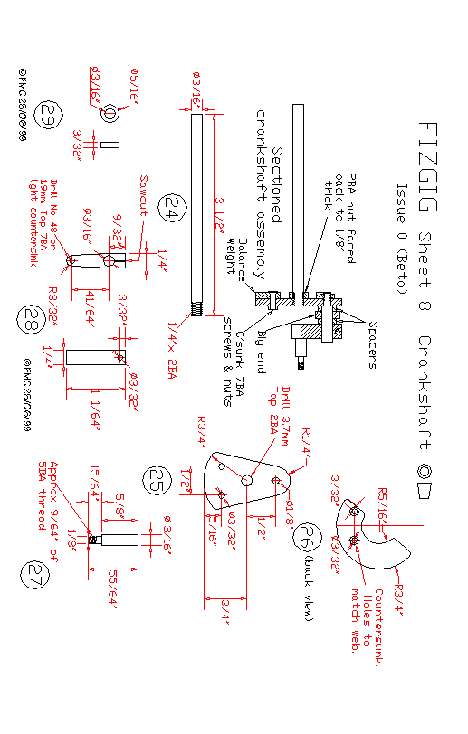

sheet8r
sheet9r
sheet10r

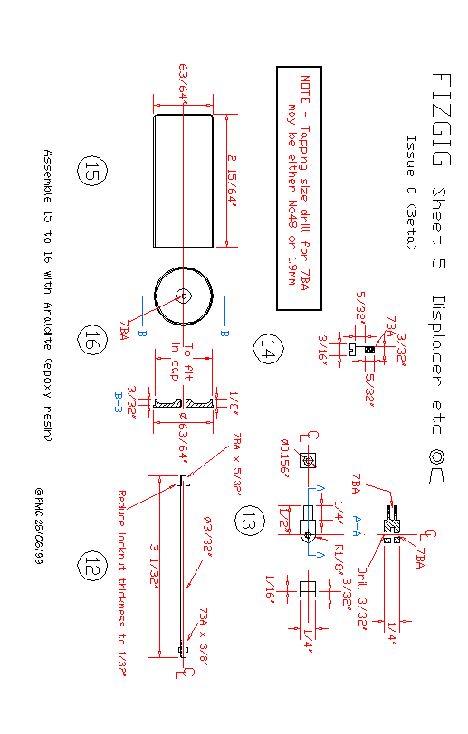

sheet11r

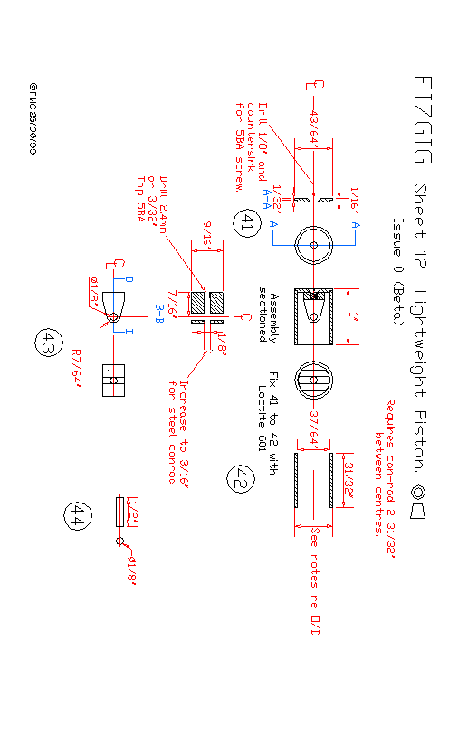

sheet12r
sheet13r
sheet14r
Materials list 1 (rotated)
Materials list 2 (rotated)

Please note: If these images are a problem, please email me at: WrenchTEN@aol.com

This is a Stirling type engine designed by Mick Collins.
e-mail Mick Collins Plans provided by Mick Collins.
