Sim+ example : real signal low-pass filter.

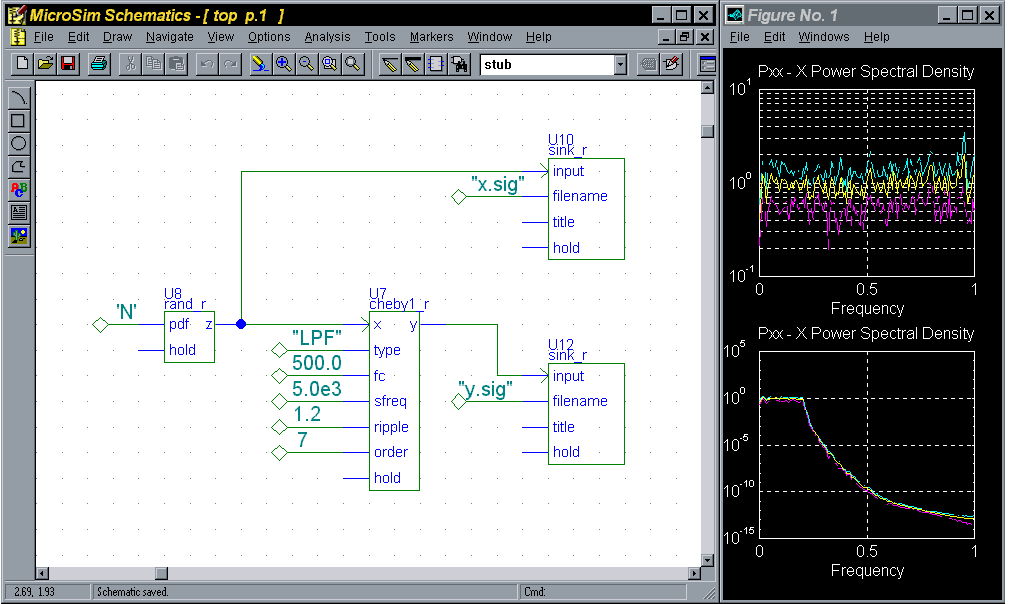

The following screenshot shows two windows: in the left window is the simulated system block diagram (in this example - entered with MicroSim's schematics), the right window shows power-spectrum plots of the input and output signals of the filter. To generate spectrum plots, the raw (real) signals are saved to files "x.sig" and 'y.sig", then imported to Matlab, the actual power spectrum computation and plotting is done in Matlab.

Blocks used in this simulation

Name	Description
rand_r	real random number generator. if the PDF pin is set to 'N' then normal distribution is applied (with zero mean and var=1), otherwise this block generates uniform distributed random variables in the range [-0.5,0.5] the values at the output of rand_r are statistically independent.
cheby1_r	chebyshev type 1 real signal filter. the user has to set type, cutoff frequency, sampling frequency, passband ripple (in dB), and filter order.
sink_r	this block is used to save raw signals to text file. files generated with this block are easily read by other software such as Matlab or other math / plot packages.

Sample block definition : 'rand_r.df'

//
// RAND_R.DF
//
// if PDF='N' then normal (gaussian) distribution, otherwise uniform
//


%%Inputs


  double HOLD
  char   PDF


%%Outputs


  double Z      (HOLD,PDF)


%%StateVars


  double  X1
  double  X2
  double  Za
  double  Zb
  int     n


%%Initialization


  n = 0;
  X1 = (1E-49+rand())/(2E-49+RAND_MAX);
  X2 = (1E-49+rand())/(2E-49+RAND_MAX);
  if(PDF=='N'){
    Za = sqrt(-2*log(X1))*cos(2*PI*X2);
    Zb = sqrt(-2*log(X1))*sin(2*PI*X2);
  }
  else{
    Za = X1-0.5;
    Zb = X2-0.5;
  }


%%OutputEquations


  Z = ( n==0 ? Za : Zb )


%%StateEquations


  if(!(HOLD>0.0)){
    if(n==1){                                        // since we have to
      X1 = (1E-49+rand())/(2E-49+RAND_MAX);          // use pairs of RVs
      X2 = (1E-49+rand())/(2E-49+RAND_MAX);          // to make single
      if(PDF=='N'){                                  // RV each sample,
        Za = sqrt(-2*log(X1))*cos(2*PI*X2);          // the RV pair is
        Zb = sqrt(-2*log(X1))*sin(2*PI*X2);          // generated every other
      }                                              // sample.
      else{
        Za = X1-0.5;
        Zb = X2-0.5;
      }
      n=-1;
    }
    ++n;
  }


%%Termination


%%End
