Sim+ example : Time Variable Communication Channel and Adaptive Linear Equalizer

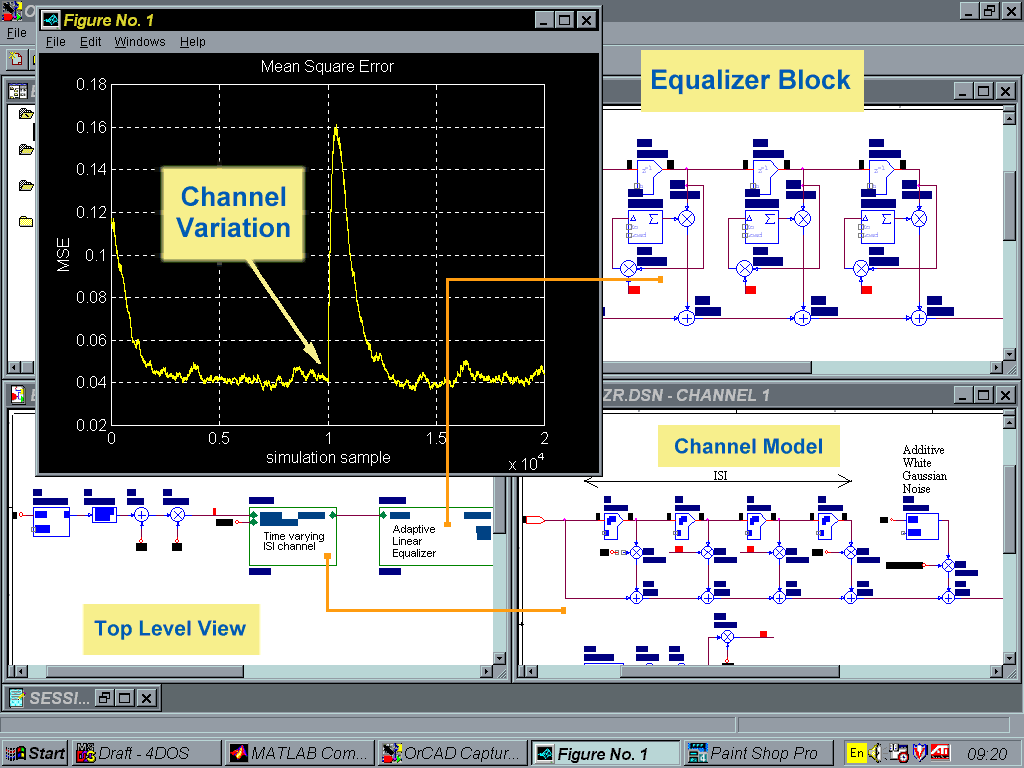

In this example, block diagrams were entered using OrCAD Capture, simulation results (mean square error at the output of the equalizer) were loaded to Matlab and plotted using Matlab 'plot' command.

Note the hierarchical structure of the system's block diagram.

The channel ISI + AWGN, with ISI coefficients changing at the 10000th simulation sample.

The equalizer implements basic gradient algorithm for minimum MSE.

This example is not yet included with the downloadable archives, please contact abSim if you wish to receive a copy by email.
