Sim+ example : 16 points QAM simulation

In this example, block diagrams were entered with OrCAD SDT package.

• click here to view block diagram of the simulated system
• click here to view simulation results - eye-pattern plot

Block Diagrams

top level

back to top of page

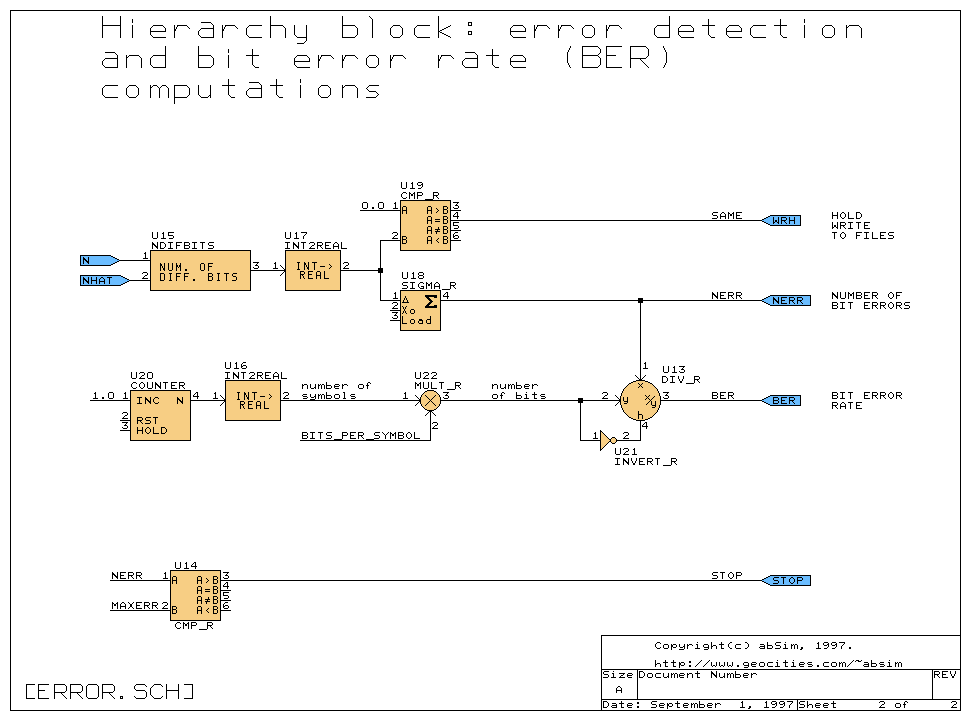

error detection block

back to top of page

Simulation results - eye pattern plot

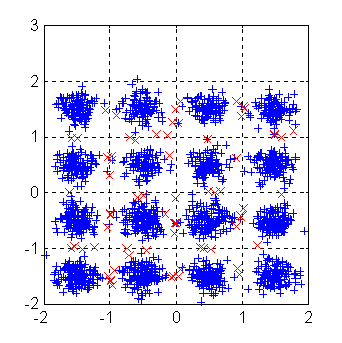

simulation results in eye-pattern plot format: blue '+'s mark good symbol reception red 'x's mark symbol receive errors the plot was created using Matlab to import and plot raw simulation results.

back to top of page
