Yellow/GM Jumbo Buses

TD 5001
TDH 5101
TDH 5102
TD 5401
TDH 5502

TD-5401/TD-5001
Transit Diesel
54 passenger (nominal)
50 passenger (nominal after rebuilding)
version 01 GMC 6-71 Diesel


TD-5401-EXP-204. Note 8 windows forward of the center exit. from July-Aug., 1971 Motor Coach Age

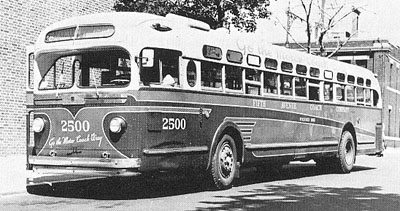

TD-5001-EXP-204. Note 7 windows forward of the center exit. from July-Aug., 1971 Motor Coach Age

Built - 1940, rebuilt 1947
Length - 41' 7" (39' 7" after rebuild)
Wheelbase - 279 3/16"?, (255 3/16" after rebuild)
Width - 96"
Passengers - 54/50(nominal)

Delivery List

version 1.0.0

TD-5401

Serial# Number Acquired by Year Notes
exp-204 Demo '40 Yellow Coach planning records show this as a TD-5501 but NY seating requirements restricted it to 54
operated as Fifth Ave. 2500 and Chicago Motor Coach 2500.
rebuilt as TD-5001 exp-204

TD-5001

Serial# Number Acquired by Year Notes
exp-204 Demo '47 rebuilt from TD-5401 (one window shorter;
to Fifth Ave. Coach Co. 2500 ('48); to Westchester Street Trnsp. Co. 2500 ('62); destroyed by fire 1968

TDH-5101/TDH-5102
Transit Diesel
51 passenger (nominal)
version 01 (NYC specs.)
Version 02 (general specs.)
GMC 6-71 Diesel

TDH-5101-080
TD-5101-080. Note 7 (paired) windows forward of the center exit and double front entrance doors. from July, 1992 Motor Coach Age

TDH-5102-001
TDH-5102-001 at Northern Bld. and 82nd, Queens in 1958.
Note 7 (paired) windows forward of the center exit and double front entrance doors. Photo by Vern Gillman from the Steven Olsen Collection

Built - 1947
Length - 40' Wheelbase - 247 15/16"
Width - 96"
Passengers - 51(nominal)
Delivery List

version 1.0.0

TDH-5101

Serial# Number Acquired by Year Notes
001-400 4500 - 4899 New York Transit Authority '48

TDH-5102

Serial# Number Acquired by Year Notes
001 2501 Fifth Ave. Coach Co. '48

TDH-5502
Transit Diesel
55 passenger (nominal)
Version 02 (general specs.)
GMC 6-71 Diesel

TDH-5502-079
TD-5502-079, in July of 1964 at State and VanBuren, Chicago, IL, .
Note 8 (paired) windows forward of the center exit and double front entrance doors. Photo by A. J. Reinschmidt

Built - 1948
Length - 42'
Wheelbase - 279 3/16"
Width - 96"
Passengers - 55(nominal)
Delivery List

version 1.0.0

Serial# Number Acquired by Year Notes
exp-248 Demo. '48 to Chicago Motor Coach 500 ('51); to Chicago Tranist Authority ('52) same #.
001-100 501-600 Chicago Motor Coach '48 to Chicago Tranist Authority ('52) same #s.

Data published in Sept 1966, July-Aug. 1971 and other issues of Motor Coach Age
last updated 10/6/98

This page brought to you by: A. J. Reinschmidt

Your help is needed!
Rosters are based on dated information. No matter how current they were when they were published, things change. New buses are acquired, old buses sold or renumbered.
If you can provide any additional information or corrections to the rosters or delivery lists please let me know. Also if you can provide rosters of your local properties I'd be glad to post them. With your help we can make this THE place for bus roster information.
My e-mail address is: buslist@bus-rosters.com
