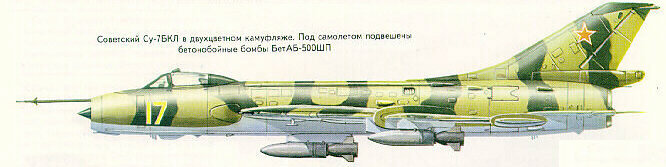

Russian Fighter-Bomber Su-7B "Fitter"



Aircraft  Su-7B Fitter
Type  Fighter-Bomber
Year  1960
Engine  1 x AL-7F1-100, turbojet
Wingspan  9.31 m
Length  18.05 m
Height  5.9 m
Weight  13600 kg/15000 kg
Max. speed  2120 km/h (2M)
Range  1875 km
Payload  2000 kg
Crew  1
Armament  2 x 30 mm guns: NR-30, 2x80 rounds

Tactical Nuclear bomb:
8U69 (5 KTonn)

Rockets:
ORO-57K, S-3K, UB-16-57,UB-32-57,
ARS-212, S-24

Free-Fall bombs:
FAB-100, OFAB-100, ZAB-100, FAB-250,
OFAB-250, FAB-500,BetAB-500, ZB-360, ZB-500


Su-7 is a single-engine aircraft. The fuselage is very long and round. A cone is protruding from the circular air intake in the nose. Engine exhaust occupies the rear of the fuselage. Tail fin is very tall and swept. Wings are swept along both leading and trailing edge, and so is the tail plane. Guns are mounted in the wings near the fuselage. Canopy overlooks the nose. Main landing gear retracts in the wings. The development of Su-7 began in the early 1950's. First prototype called S-1 "Strela" made its first flight in 1955. The prototype came out to be very promising and Su-7 went in production several years later. Main modifications were Su-7B and Su-7BKL. The airplane was exported to Czechoslovakia, Poland, Romania, China, Egypt, India and other countries.
