This Bad Boy is more powerful than even Tim Allen could want! Check out the specs!

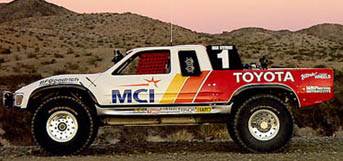

1997 Toyota Desert Truck Specifications

Engine

Type: Toyota Development V8, 4 valves per cylinder, Double Overhead Cam
Displacement: 4.6 liters
Power: 500+ hp at 8200 rpm
Induction: TRD/EFI Technologies
Bore: 3.54 inches
Stroke: 3.5 inches
Compression Ratio: 13:1
Engine Maintenance and Development: Toyota Racing Development (TRD)

Drive Train

Transmission: 5-speed manual, Hewland internals
Clutch: Tilton Carbon/Carbon Double Disc
Final Drive: Precision Preparation Inc. - Custom Transaxle

Chassis/Body

Chassis: Chrome-Moly Steel Tube Frame
Body: Carbon/Kevlar shell of Toyota SR5 Xtra Cab

Suspension

Type: Four-wheel fully independent, double-wishbone
Front/Rear: Position sensitive coil spring
Shock Absorbers: Bilstein velocity and position sensitive

Wheels And Tires

Wheels: Ultra Custom Wheels -- 8"X17"
Tires: BFGoodrich Baja T/A 37X12.5X17R
Brakes: 4 Wheel disc Brembo Calipers, PPI.-manufactured rotors

Dimensions

Race Weight: 3,800 pounds
Wheel Base: 120 inches
Overall Length: 188 inches
Overall Width:80 inches
Height: 64 inches
Track Width: Front -- 68 inches, Rear -- 68 inches
Fuel Capacity: 45 gallons
