DUI: DUI OpenGL support

OpenGL support is still experimental but due to the simplicity of the GtkGlExt API few changes should be needed to the final version.
/*
 * button.c:
 * Simple toggle button example.
 *
 * written by Naofumi Yasufuku  <naofumi@users.sourceforge.net>
 * adapted by Antonio Monteiro to the DUI toolkit <duitoolkit@yahoo.ca>
 * this example is released under GPL license
 */
/*
 * This file is part of dui.
 *
 * dui is free software; you can redistribute it and/or modify
 * it under the terms of the GNU Lesser General Public License as published by
 * the Free Software Foundation; either version 2.1 of the License, or
 * (at your option) any later version.
 *
 * dui is distributed in the hope that it will be useful,
 * but WITHOUT ANY WARRANTY; without even the implied warranty of
 * MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE.  See the
 * GNU Lesser General Public License for more details.
 *
 * You should have received a copy of the GNU Lesser General Public License
 * along with dui; if not, write to the Free Software
 * Foundation, Inc., 59 Temple Place, Suite 330, Boston, MA  02111-1307  USA
 */

module testGL.TestGL;

import dui.All;
import ggl.All;

private import std.math;

/**

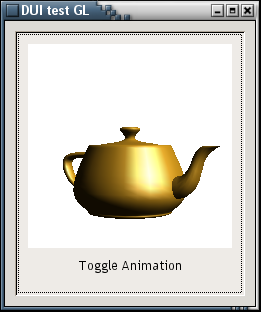

 * A GL toggle button
 */
class GLToggleButton : ToggleButton ,
RealizeListener,
MapListener,
ExposeListener,
ConfigureListener,
VisibilityListener,
IdleListener,
ButtonClickedListener
{

    bit animate = true;

    GLfloat angle = 0.0;
    GLfloat pos_y = 0.0;

    int idleID;

    DrawingArea da;

    this(GLConfig glconfig)
    {
        VBox vbox = new VBox(false,0);
        vbox.setBorderWidth(10);

        da = new DrawingArea();
        da.setSizeRequest(200,200);

        GLWidget.setGLCapability(da,glconfig,null,true,GLRenderType.RGBA_TYPE);

        vbox.packStart(da,true,true,0);

        /*
        * Label.
        */

        Label label = new Label("Toggle Animation");
        vbox.packStart(label,false,false,10);

        /* Add VBox. */
        add(vbox);

        Dispatcher dispatcher = Dispatcher.getDispatcher();
        dispatcher.addRealizeListener(this,da);
        dispatcher.addExposeListener(this,da);
        dispatcher.addConfigureListener(this,da);
        dispatcher.addMapListener(this,da);
        dispatcher.addVisibilityListener(this,da);
        dispatcher.addButtonClickedListener(this,this,"ToggleAnimation");
    }

    bit idleCallback()
    {
        angle += 1.0;
        if (angle >= 360.0)
        {
            angle -= 360.0;
        }

        pos_y = std.math.sin(angle * std.math.PI / 180.0);

        da.draw();

        return true;
    }

    bit exposeCallback(Widget widget)
    {

        GLContext context = GLWidget.getGLContext(widget);
        GLDrawable drawable = GLWidget.getGLDrawable(widget);

        /* brass */
        static GLfloat ambient[4]  = [ 0.329412, 0.223529, 0.027451, 1.0 ];
        static GLfloat diffuse[4]  = [ 0.780392, 0.568627, 0.113725, 1.0 ];
        static GLfloat specular[4] = [ 0.992157, 0.941176, 0.807843, 1.0 ];
        static GLfloat shininess   = 0.21794872 * 128.0;

        /*** OpenGL BEGIN ***/
        if ( !drawable.begin(context) )
        {
            return false;
        }

        glClear (GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT);

        glLoadIdentity ();
        glTranslatef (0.0, 0.0, -10.0);

        glPushMatrix ();
        glTranslatef (0.0, pos_y, 0.0);
        glRotatef (angle, 0.0, 1.0, 0.0);
        glMaterialfv (GL_FRONT, GL_AMBIENT, ambient);
        glMaterialfv (GL_FRONT, GL_DIFFUSE, diffuse);
        glMaterialfv (GL_FRONT, GL_SPECULAR, specular);
        glMaterialf (GL_FRONT, GL_SHININESS, shininess);
        //GLDraw.torus(true, 0.3, 0.6, 30, 30);
        GLDraw.teapot(true, 1.1);
        glPopMatrix ();

        if ( drawable.isDoubleBuffered() )
            drawable.swapBuffers();
        else
            glFlush ();

        drawable.end();
        /*** OpenGL END ***/

        return true;

    }

    bit noExposeCallback(Widget widget){return false;}

    bit configureCallback(Widget widget, EventConfigure e)
    {
        GLDrawable drawable = GLWidget.getGLDrawable(widget);
        GLContext context = GLWidget.getGLContext(widget);
        GLfloat w = widget.getWidth();
        GLfloat h = widget.getHeight();
        GLfloat aspect;

        /*** OpenGL BEGIN ***/
        if ( !drawable.begin(context) )
        {
            return false;
        }

        glViewport (0, 0, w, h);

        glMatrixMode (GL_PROJECTION);
        glLoadIdentity ();
        if (w > h)
        {
          aspect = w / h;
          glFrustum (-aspect, aspect, -1.0, 1.0, 5.0, 60.0);
        }
        else
        {
          aspect = h / w;
          glFrustum (-1.0, 1.0, -aspect, aspect, 5.0, 60.0);
        }

        glMatrixMode (GL_MODELVIEW);

        drawable.end();
        /*** OpenGL END ***/

        return true;
    }

    void addIdle()
    {
        if ( idleID == 0 )
        {
            idleID = Dispatcher.getDispatcher().addIdleListener(this);
        }
    }

    void removeIdle()
    {
        if ( idleID != 0 )
        {
            Dispatcher.getDispatcher().removeIdleListener(idleID);
            idleID = 0;
        }
    }

    bit mapCallback(Drawable drawable)
    {
        if (animate)
        {
            addIdle();
        }
        return true;
    }

    bit unmapCallback(Drawable drawable)
    {
        removeIdle();
        return true;
    }

    void buttonClickedCallback(Button button, char[] action)
    {
        animate = !animate;

        if (animate)
        {
            addIdle();
        }
        else
        {
            removeIdle();
            draw();
        }
    }

    bit realizeCallback(Widget widget)
    {
        printf("realizeCallback\n");
        GLContext context = GLWidget.getGLContext(widget);
        GLDrawable drawable = GLWidget.getGLDrawable(widget);

        static GLfloat ambient[]  = [ 0.0, 0.0, 0.0, 1.0 ];
        static GLfloat diffuse[]  = [ 1.0, 1.0, 1.0, 1.0 ];
        static GLfloat position[] = [ 1.0, 1.0, 1.0, 0.0 ];
        static GLfloat lmodel_ambient[] = [0.2, 0.2, 0.2, 1.0];
        static GLfloat local_view[] = [0.0];

        /*** OpenGL BEGIN ***/
        if (!drawable.begin(context) )
        {
            return false;
        }

        glLightfv (GL_LIGHT0, GL_AMBIENT, ambient);
        glLightfv (GL_LIGHT0, GL_DIFFUSE, diffuse);
        glLightfv (GL_LIGHT0, GL_POSITION, position);
        glLightModelfv (GL_LIGHT_MODEL_AMBIENT, lmodel_ambient);
        glLightModelfv (GL_LIGHT_MODEL_LOCAL_VIEWER, local_view);
        glEnable (GL_LIGHTING);
        glEnable (GL_LIGHT0);
        glEnable (GL_DEPTH_TEST);

        glClearColor (1.0, 1.0, 1.0, 1.0);
        glClearDepth (1.0);

        drawable.end();

        return false;
    }

    bit unrealizeCallback(Widget widget){return false;}

    bit visibilityCallback(Widget widget, EventVisibility e)
    {
        printf("visibilityCallback\n");
        if (animate)
        {
            if (e.getState() == VisibilityState.FULLY_OBSCURED)
            {
                removeIdle();
            }
            else
            {
                addIdle();
            }
        }

        return true;
    }


}



public:
class TestGL : MainWindow
{
    this(DUI dui)
    {
        super("DUI test GL");
        setReallocateRedraws(true);
        setBorderWidth(10);
        show();
    }
}

void main(char [][]args)
{
    DUI dui;


    int argc = args.length;

    for ( int i=0 ; i<args.length ; i++ )
    {
        printf("arg %d = %.*s\n\0",i,args[i]);
    }

    dui = DUI.dui(args);

    int argc1 = 0;
    GL.init(&argc1, null);

    /*
    * Configure OpenGL-capable visual.
    */

    /* Try double-buffered visual */
    GLConfig configgl = new GLConfig(GLConfigMode.RGB | GLConfigMode.DEPTH | GLConfigMode.DOUBLE);
    if (configgl.ggl() === null)
    {
      printf ("*** Cannot find the double-buffered visual.\n");
      printf ("*** Trying single-buffered visual.\n");

      /* Try single-buffered visual */
      configgl = new GLConfig(GLConfigMode.RGB    |
                                   GLConfigMode.DEPTH);
      if (configgl.ggl() === null )
        {
          printf ("*** No appropriate OpenGL-capable visual found.\n");
        }
    }

    if ( configgl.ggl() !== null )
    {
        Dispatcher.getDispatcher();

        TestGL testGL = new TestGL(dui);
        testGL.add(new GLToggleButton(configgl));
        //dui.thread.wait();
        dui.go();
    }

}
DUI OpenGL support

DUI version 00.07
