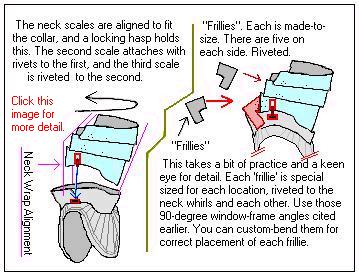

![]() Each 'frillie' is created as a mated, mirror-image (left and right) of each other. Cut out and attached on each side, one pair at a time. This way, each 'level' on both sides is the same size width and height. Only the bottom 'frillie' is riveted to the collar whirl at this time, and the 'cut-out' fits over the collar allowing the bottom to almost reach the shoulder area. All subsequent frillies are only riveted to the one below it, not directly to the neck-whirls. This allows the 'tower of frillies' to be bent forward towards the temple-cheeks of the snakehead. Only then are they riveted with brackets to the collar whirl. There will be tension on these when the back-of-head scales are attached, so you want to make sure that the frillies are secure. |

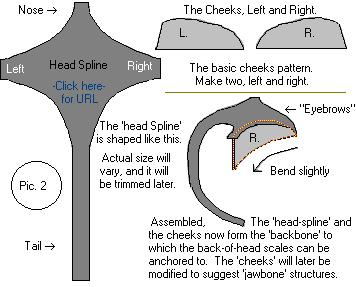

![]() This sketch shows the shape of the spline anchor and cheeks. Much of the 'tail' of the head-spline might be cut-off later, and the 'eyebrow' above the cheeks trimmed. It's not too important therefore to retain the exact demensions of the back-of-head spline. Just make the two left-right halves symmetrical, and also the cheeks, Left and Right. Use those 90-degree window-frame brackets here, especially important around the 'nose' where the cheeks and head-spline meet. The 'bending' of cheeks imparts tension, you need the nose to remain in place. The 'nose' and the 'tail' are no narrower than 2-inches. The 'tail' can be wider as it will be covered with the back-of-head scales, but keeping it 'less wide' ultimately reduces the overall weight in the finished product. -So, keep it narrow. Two inches wide is adequate. |
![]() Outlined in light blue to show the edges, begin with the bottom frillie, numbered one in this image.
|
![]() The 'head spline unit' is attached with rivets to the bottom back-of-head scale, and the cheeks are ready to be riveted to the top-most front edge of the neck-whirl. With the headpiece affixed to the back-of-head scale by the 'tail', center the 'face' of the Serpent's Head over the upper neck-whirl, and rivet each 'cheek'. This forms an 'arch' from the back-of-head to tip of the nose. |
