| C2000L - 25mm(H) x 41mm(W) x 2.0mm(T) x 6 meter (L) Finishing Hot-dipped galvanised Pre-galvanised Sheet Electro Plating Powder Epoxy Coating |
|
 |
| C2500 - 41mm(H) x 41mm(W) x 2.5mm(T) x 6 meter (L) C2000 - 41mm(H) x 41mm(W) x 2.0mm(T) x 6 meter (L) Finishing Hot-dipped galvanised Pre-galvanised Sheet Electro Plating Powder Epoxy Coating |
|
 |
| CL2500 - 41mm(H) x 41mm(W) x 2.5mm(T) x 6 meter (L) Slots Dimension - 12.85mm(W) x 36.70mm(L) Distance between Slots - 56.70mm (on center) Finishing Hot-dipped galvanised Pre-galvanised Sheet Electro Plating Powder Epoxy Coating |
| Standard Strut Channels |
| Standard Strut Channels |
| Standard Slotted Strut Channels |
|
 |

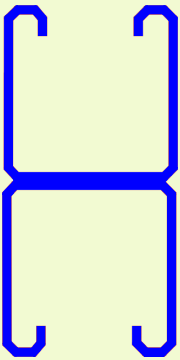

| C2500/2 - 82mm(H) x 41mm(W) x 2.5mm(T) x 6 meter (L) Welding - Spot weld from internally. Distance between spot welds - 75mm (on center) Finishing Hot-dipped galvanised Powder Epoxy Coating |
| Standard Double Strut Channels |
|
|
|
 |
|
 |
 |
|
 |
|
|
|
| 41 |
| 22 |
| 25 |
| Thickness : 2.0mm |
|
|
|
|
|
|
| 41 |
| 22 |
| 41 |
| Thickness : 2.5mm & 2.0mm |
|
|
|
|
|
|
|
| 41 |
| 22 |
| 41 |
| Thickness : 2.5mm |
|
|
|
|
|
|
| 41 |
| 22 |
| 82 |
| Thickness : 2.5mm |
| Strut Channel & Accessories |
 |
|
