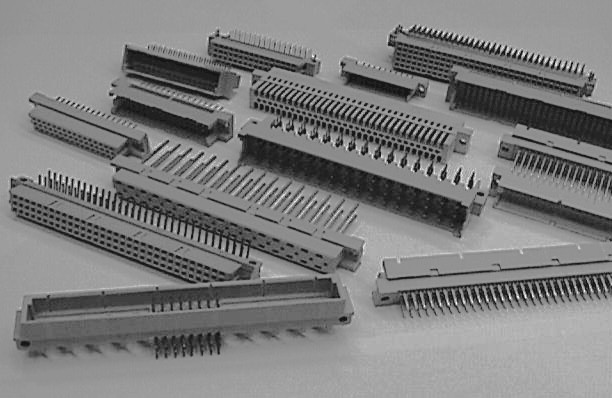

DIN 41612 Connectors.

DIN 41312 is outdated Backpanel and Board-to-Board connector. The Pitch - .100"(2.54MM) is Too Big.
It has Polarisation Feacher, but not a Mating Guide and not Fitting.
So, Cable Applications are Problematic.
Still usable for Board Power Applications (F-Type, G-type) and for low Speed Robust Board-to-Board Appl.
Simple, Strong, not Expensive and wide spread connector.

Technology: Solder on Board or Press on Board or Panel Mount Wire Wrap contacts.
Boardmounting Holes or Metal Snap Latches or Panel Mounting Holes on Male and Female Connectors.
Pre-mating or Late-mating options of Male Contact available.

Pitch .100" (2.54MM)	1 Row Body.	P Type, a Row loaded, P - 32 positions. P/2 - 16 pos.	MALE-STR / FEMALE-RA
Pitch .100" (2.54MM)	2 Rows Body.	B Type, ab Rows loaded, B - 64 positions. B/2 - 32 pos. B/3 - 20 pos.	MALE-RA and STR / FEMALE-STR and RA
Pitch .100" (2.54MM)	2 Rows Reversed Body.	Q Type, ab Rows loaded, Q - 64 positions. Q/2 - 32 pos. Q/3 - 20 pos.	MALE-STR / FEMALE-RA

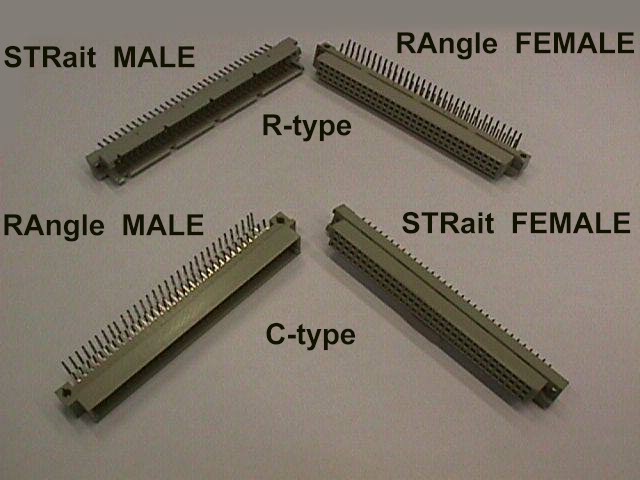

Pitch .100" (2.54MM)	3 Rows Body.	C Type, abc Rows loaded, C - 96 positions. C/2 - 48 pos. C/3 - 30 pos. C Type, a-c Rows loaded, C - 64 pos. C/2(a-c) - 32 pos. C/3(a-c) - 20 pos.	MALE-RA and STR / FEMALE-STR and RA
Pitch .100" (2.54MM)	3 Rows Reversed Body.	R Type, abc Rows loaded, R - 96 positions. R/2 - 48 pos. R/3 - 30 pos. R Type, a-c Rows loaded, R - 64(a-c) pos. R/2(a-c) - 32 pos. R/3(a-c) - 20 pos.	MALE-STR / FEMALE-RA

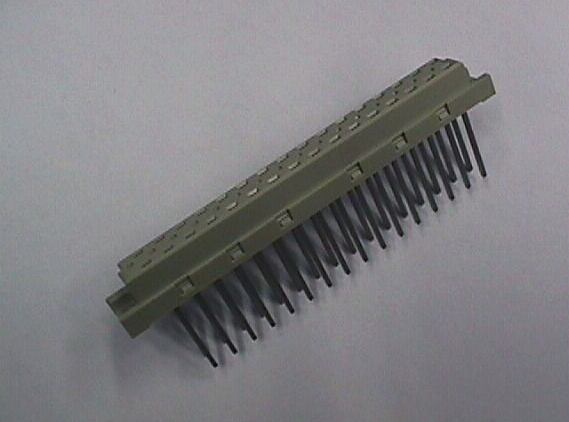

Pitch .200" (5.08MM)	2 Rows Body.	D Type, ac Rows loaded, Wide Blade Contacts for 5.5A Current, Solder, Press or Wire Wrap Tail Legs 1x1MM SQ. 32 positions.	MALE-RA and STR / FEMALE-STR
Pitch .200" (5.08MM)	3 Rows Body.	E Type, ace Rows loaded, Wide Blade Contacts for 5.5A Current, Solder, Press or Wire Wrap Tail Legs 1x1MM SQ. or 0.6x0.6MM SQ. 48 positions.	MALE-RA and STR / FEMALE-STR and RA

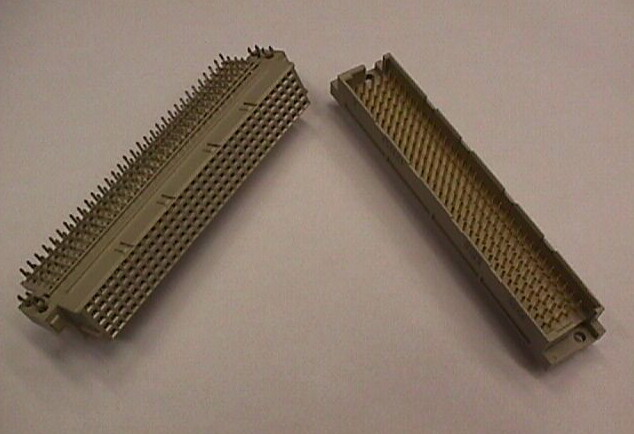

Pitch .100" (2.54MM)	5 Rows Body.	E-160 Type, abcde Rows loaded, 160 positions.	FEMALE-RA
Pitch .100" (2.54MM)	5 Rows Reversed Body.	TE-160 Type, abcde Rows loaded, 160 positions.	MALE-STR

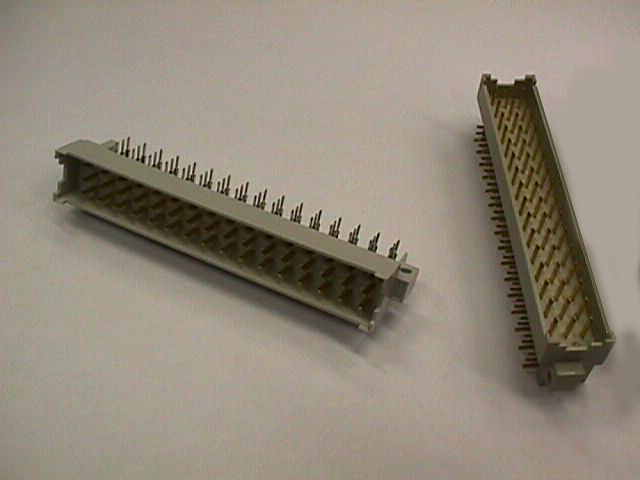

Pitch .200" (5.08MM)	3 Rows Body.	F Type, zbd Rows loaded, Wide Blade Male Contacts for 5.5A Current, Solder, Press or Wire Wrap Tail Legs 1x1MM SQ. 48 positions.	MALE-RA / FEMALE-STR and Low Profile STR

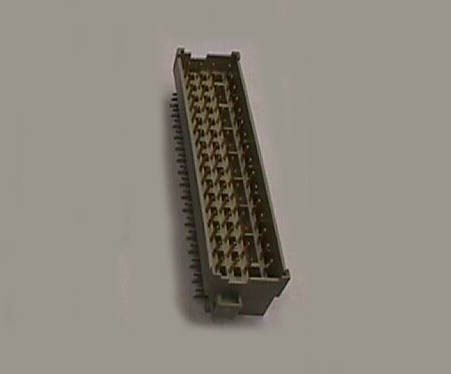

Pitch .200" (5.08MM)	4 Rows Body.	G Type, zbdf Rows loaded, Wide Blade Male Contacts for 5.5A Current, Solder, Press or Wire Wrap Tail Legs 1x1MM SQ. 64 positions.	MALE-RA / FEMALE-STR and Low Profile STR
Pitch .300" (7.62MM)	1 Rows Body.	H11 Type, b Row loaded, 4.8 MM Width Male Blade Contacts for 15-20A Current, Solder, Press or back 6.3 MM x 0.8 MM Width Male Blade Contacts. Gold, Tin or Silver Contact Plating. 11 positions.	MALE-RA Board or STR Panel Mounted / FEMALE-STR Panel Mounted.
Pitch .200" (5.08MM)	1 Rows Body.	H15 Type, zd Rows loaded, 4.8 MM Width Blade Male Contacts for 15-20A Current, Solder or back 6.3 MM x 0.8 MM Width Blade Male Contacts on Female Connector. Screw Wire Mounting or back 6.3 MM x 0.8 MM Width Blade Male Contacts on Male Connector. Gold, Tin or Silver Contact Plating. 11 positions.	MALE-RA Board or STR Panel Mounted / FEMALE-STR Panel Mounted.
Pitch .100"/ Mixed	3 Rows Body.	M Type, Mixed Contact arangement: Power or Coax or Fiber Optics Contacts and Data Contacts (abc Rows loaded) Several Power or Coax Cables mixer with Data wires in a Single Connector - Hard to Use... 2 Power/Coax + 78 Data(26x3) 4 Power/Coax + 60 Data(20x3) 6 Power/Coax + 42 Data(14x3) 8 Power/Coax + 24 Data(8x3) 10 Power/Coax + 6 Data(2x3)	MALE-RA / FEMALE-STR
Pitch .100" (2.54MM)	4 Rows Body.	CD128 Type, abcd Rows loaded,	FEMALE-STR Only.
Pitch .100" (2.54MM)	4 Rows Reversed Body.	RD128 Type, abcd Rows loaded.	MALE-RA Only.
Pitch .100" (2.54MM)	3 Rows Back Shroud for Long Fitthorough Male Contacts(C and R connectors).	abc or a-c Rows loaded,	MALE-STR Only.

Recommended Manufacturers:
AMP/TYCO ®, Amphenol ®, FCI ®, ERNI ®, Elco ®, ITT-Cannon ®, Siemens ®, FCT ®,
