2 MM HARD METRIC / Compact PCI Connectors
Per IEC 61076-4-101 Standard

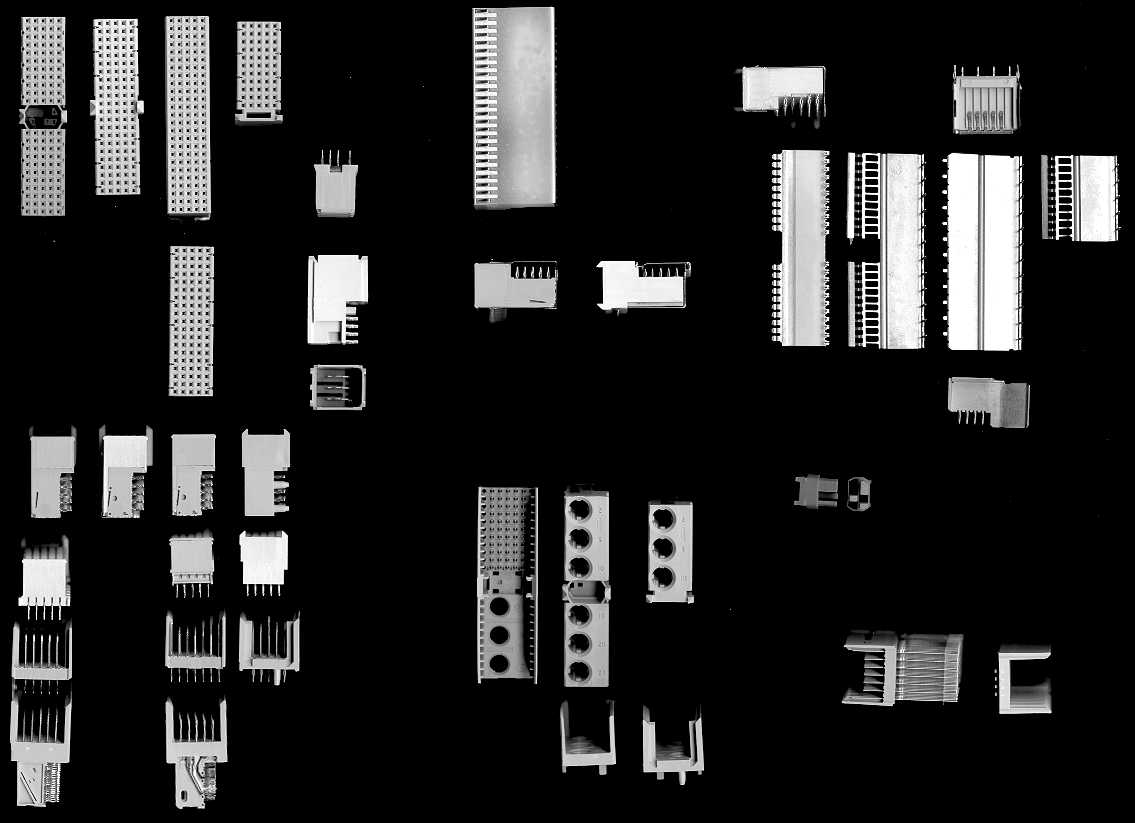

     A      AB      B       C      Power         Shielded                        Lower Shields

Some Words and Pictures about 2mm Hard Metric:
The Standard IEC 61076-4-101 / Compact PCI.
Main Manufacturer List:
"Z-Pack"TM - AMP  "ERmet"TM - ERNI  "MILLIPACS 2"TM - FCI Framatom/Berg  "har-bus HM"TM - HARTING  "EPT"TM - EPT  All Manufacturers List
Shortenings:
Connector=CONN.; Application=Appl.; Strait=STR PCB; Angled=RA PCB=Right Angle;
Data Backplain-to-Card Appl.: Backplane CONN.MAIL,STR PCB mate with Card CONN.FEMALE,RA PCB.
Data Card-to-Card Appl.: CONN.MALE,STR PCB. mate with CONN.FEMALE,STR PCB.
Power Backplain-to-Card Appl.: Backplane CONN.POWER MALE,STR PCB. mate with Card CONN.FEMALE,STR PCB.
Power Card-to-Card Appl.: CONN.POWER MALE,STR PCB. mate with CONN.FEMALE,STR PCB.
PCB Mounted
TypeSex/GenderNumber of position Number of RowsMating DirectionApplication Options
A-type
5 Data contacts per row+Coding Key Slot		MALE / FEMALE11022STR PCB
RA PCB 		Card-to-Card
Board-to-Card		Color Coding Key
Shielding
AB-type
5 Data contacts per row+Guide Slot		MALE / FEMALE125/110/9525/22/19 STR PCB
RA PCB		Card-to-Card
Board-to-Card		Shielding
B-type
5 Data contacts per row		MALE / FEMALE125/110/9525/22/19 STR PCB
RA PCB		Card-to-Card
Board-to-Card		Shielding
C-type
5 Data contacts per row+1/2 of Guide Slot		MALE / FEMALE5511 STR PCB
RA PCB		Card-to-Card
Board-to-Card		Shielding
M-type 5 Data contacts per row+4 Power/Coax cont.+Guide Slot
L-type 4+4 Power/Coax cont.+Guide Slot
N-type 4 Power/Coax cont.+1/2 of Guide Slot		MALE / FEMALE55+4/8/411/1 STR PCB
RA PCB		Card-to-Card
Board-to-Card
Card-to-Cable
Shielding
Power/ Coax contacts
A-8 or D-type 8 Data contacts per row+Guide Slot
B-8 or E-type 8 Data contacts per row
C-8 or F-type 8 Data contacts per row+1/2 of Guide Slot		MALE / FEMALE176/200/8822/25/11 STR PCB
RA PCB		Card-to-Card
Board-to-Card
Color Coding Key
Shielding
Power
3 Blade Power contacts		MALE / FEMALE3 STR PCB
RA PCB		Card-to-Card
Board-to-Card

Cable/Panel Mounted
TypeSex/GenderNumber of positionNumber of Rows Mating DirectionApplication Options
Cable
5 Data contacts per row		FEMALE204STR Cable
RA PCB		Card-to-CableShielding
