CNC machine - Tower Assembly

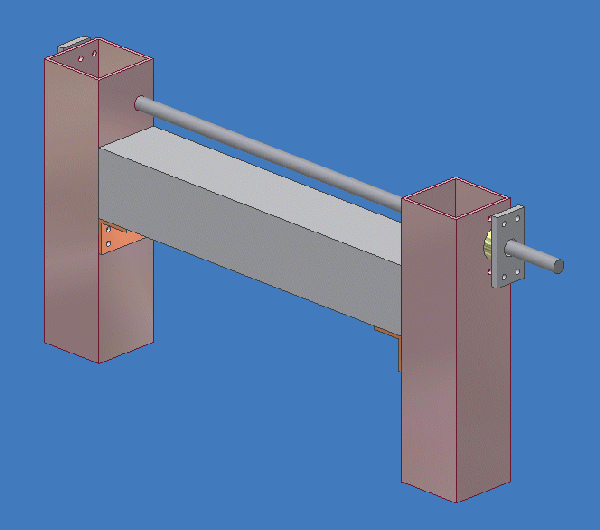

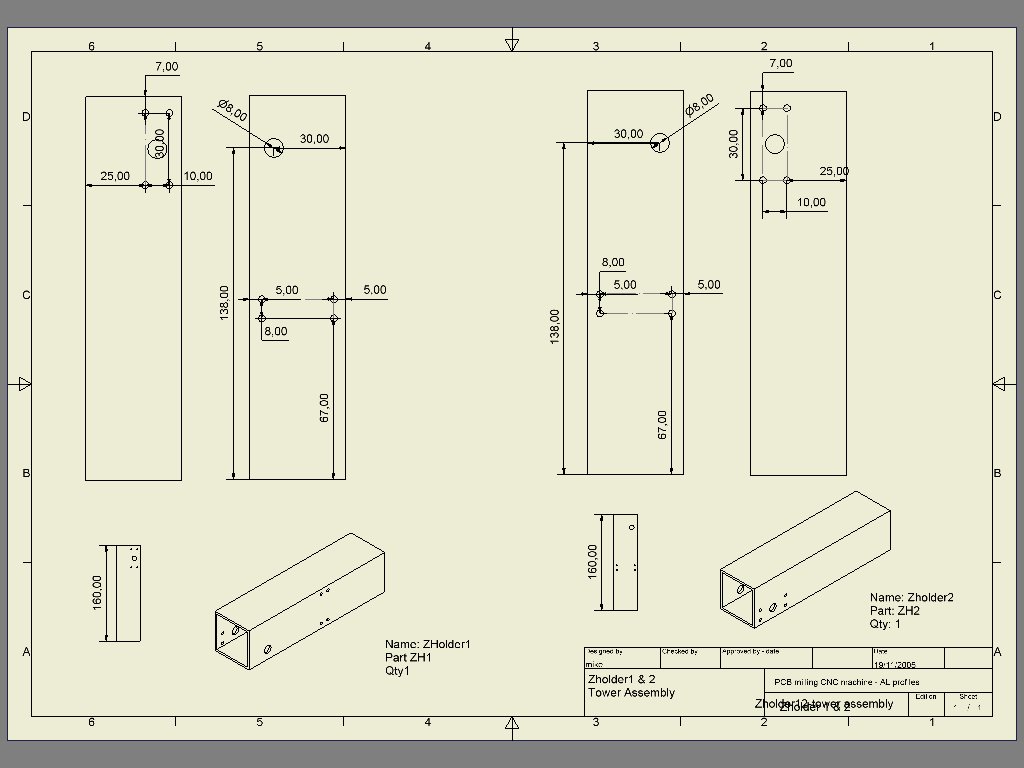

The tower assembly is a simple linear bearing made up of three square based sections. Two vertical sections that raise a horizontal section. The horizontal square profile will be used a sliding surface for the drill holder. The vertical sections house a threaded rod mountings on two ball bearings at each side. This will be the horizontal drive of the drill holder. The tower assembly construction diagrams are listed below
|
||
