ALTERNATOR MOUNT PG.2

BACK TO MY MENU

HAROLD'S HOME

BACK TO PAGE 1

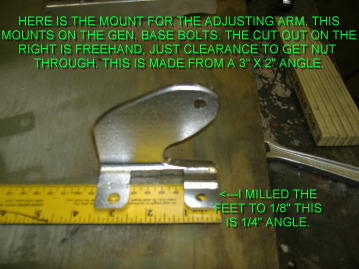

This is the bracket for the adjustment arm to bolt to. This will be mounted onto the gen stand bolts.

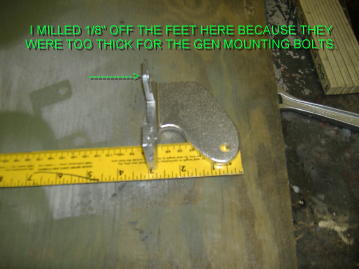

This is another view of the bracket. This is made from a 3"x 2", 1/4" thick angle. I cut and ground it to shape with the exception of the feet part which I milled to 1/8" thick.

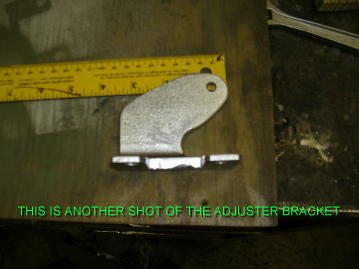

This is another shot from another angle showing how i cut out so I could get the nut on the left side of gen mount.

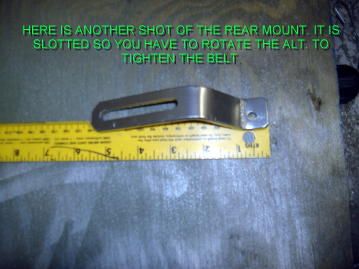

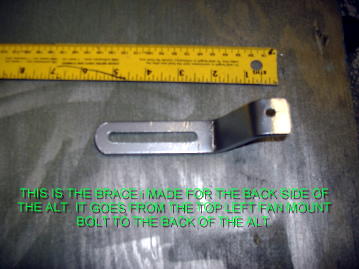

This is a bracket I made to go on the back of the alt. to the fan housing bolt on the left top,

This is another view of the bracket.

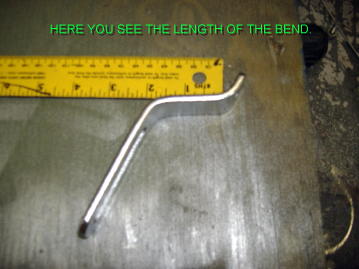

This shot shows the length of the bend.

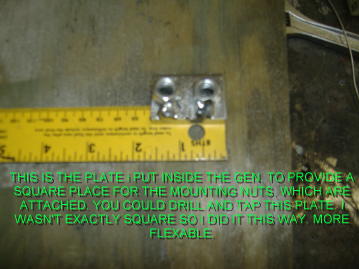

This is the plate I made to put inside the gen. so the nuts would sit flat and not be cocked.

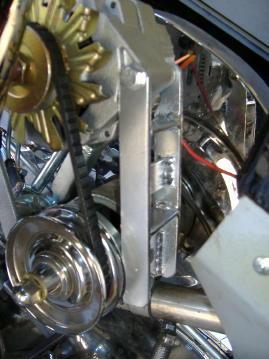

Here you can see how to mount the main alternator mount to the generator housing.
