High Vacuum Chamber

| Home | Specs | Performance Data | Vacuum Chamber | Monitor Unit | Power Control | Video System |

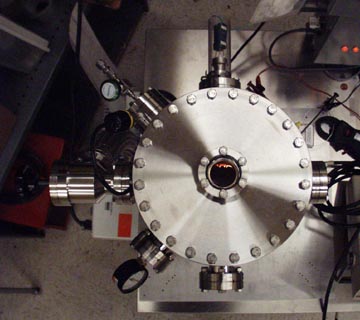

Plan view: six radial ports, ccw from right.
0°: Port for ion pump.
90°: Dual thermocouple feedthrough.
135°: Thermocouple vacuum gauge & up-to-air valve.
180°: Right-angle vacuum valve.
225°: Bourdon vacuum gauge.
270°: Port for RGA Tube.
Center : Optical Window

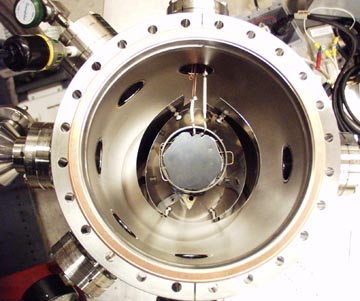

Interior view of the vacuum chamber.

1. The heater assembly on a thermally isolated support stand

2. Type "S" thermocouple with the leads connected to the vacuum feedthroughs

3. Thermal radiation shroud around the heater assembly

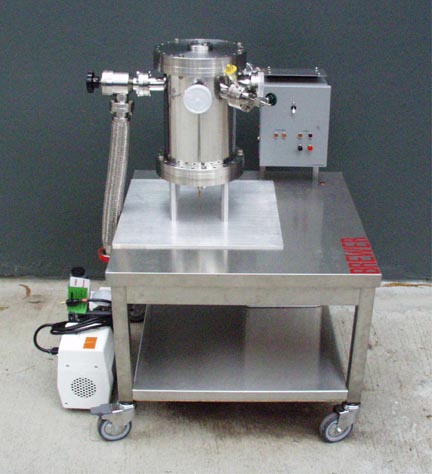

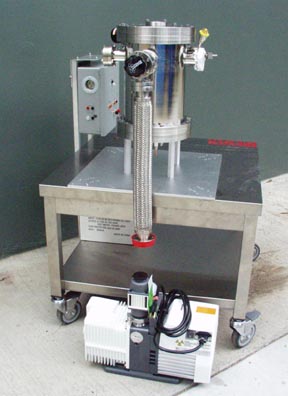

Elevation views of the vacuum chamber on a mobile stainless steel cart with the modular power control unit and mechanical 2-stage vacuum pump.

Designed and Manufactured by J. L. Tom Engineering.
