Video System
| Home | Specs | Performance Data | Vacuum Chamber | Monitor Unit | Power Control | Video System |
| A wireless video system records the operation of the 1200°C vacuum heater system. The video system consists of a compact color video camera and a video receiver with an adapter for video to USB, rendering it suitable for use with any personal computer. |
|
|
|
|
||
|
Photo of the receiver (above) and USB adapter (below).
|
Descriptive features and photo of the compact video
camera.
|
 |
A notebook PC is used with the video system and shown below are 2 saved images from the video system taken of the vacuum and temperature gauges on the monitor unit. The software provides selected intervals for saving the images onto the computer memory and selected intervals or times to automatically send an image by e-mail. An e-mail of any saved image can also be sent manually. The captured images on the computer can be viewed from remotely from another computer via user-name and password access. |
||
|
|||
|

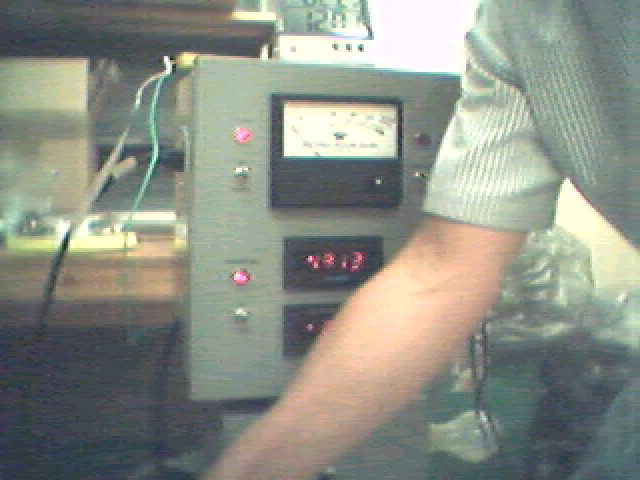

As you can see from the above images, the wireless video camera system will also document any physical activity that may occur in front of the camera. |
|||
