Main
Features: Record and Playback High Quality video
|
|
|
|
|
MPEG
Features:
l
Real-time
hardware MPEGI/II encoding and decoding
l
ISO/IEC13818-1,
-2, -3 MPEG system, video, audio code compliant.
Support system layer MPEG stream and AV split MPEG
bit-stream output.
l
Constant
bit rate (CBR) range from 1Mbps up to 15Mbps
l
Variable
bit rate (VBR) up to 10Mbps
l
I,
B, and P Picture parameter support and programmable GOP
length
l
Excellent
AV sync in long-time recording
|
|
Video
Specifications:
|
Output
MPEG File, software playback to VGA card
|
|
|
Supports
multiple video resolutions and scan rates
D1 (704*480
NTSC, 704*576PAL)－DVD
format
2/3D1 (480*480
NTSC, 480*576PAL)－SVCD
format
1/2D1 (352*480
NTSC, 352*576 PAL)
SIF (352*244
NTSC, 352*288 PAL)－VCD
format
Support
NTSC/PAL/SECAM worldwide video standard input and output
Video
Brightness, Contrast, Saturation, Hue are adjustable from
software
|
Software
Specification
|
|
File
Generation
|
Video
MPEG, Audio MPEG, A/V Multiplexed MPEG file
|
|
Driver
|
Win98/
2000/ ME/XP
Standard
WDM mini-port driver, can be emulated by Direct show
application directly
Single
frame uncompress capture and MPEG 2
record at the same time
Provide
Video for Windows frame by frame capture
|
|
Application
Software
|
Record,
Preview, Playback, Video setup, Audio setup, MPEG setup
TV
Channel select
|
|
Bundle
Software
|
DVD
it﹗---DVD
production software CD (Option)
Ulead
Video Studio 5.0SE CD-MPEGI/II Editing software CD
|

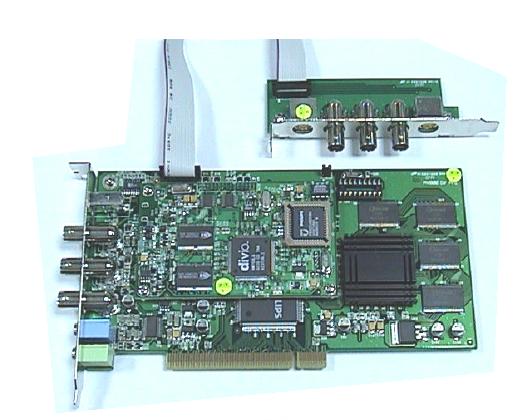

Physical
specification
|
|
|
Size: 95 * 205mm & 40 * 100mm
Weight:265gm
(card only)
PCI
2.1 Bus Compliant
Power
requirement: 5V/ 0.8A
Plug
and Play PCI 2.1 bus compliant design
6 pin IEEE 1394/DV connector
6 BNC for YUV In & Out
6 BNC/Composite transfer jacks for video in/out
S-video input & out for Y/C video port
Stereo audio in & out for mini-phone Jack
|
|
System
requirement
|
|
l
Intel
PentiumΠ
500
l
PCI
bus slot
l
64
MB system memory
l
Windows
98/ 2000/ ME/XP
l
CD-R/W
drive or DVD RAM (Option)
l
Video
input source
|
|
Package
Content
|
|
l PCI
MPEG-2TV
card
l
Video
Cable
l
S-Video
Cable
l
Mini-din
8pin expanded cable
l
Driver
and application Software CD
l
DVD
it! CD
l
Video
studio 5.0SE
|
