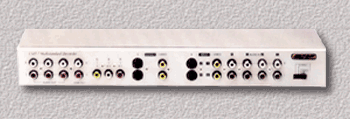

Video to YUV/RGB Decoder
FEATURES:
 |
The picture clarity can
be enhanced by decoding composite video and Y/C into
professional color difference signal (Y,R-Y, B-Y) and component
signal RGBs.
|
The use of digital comb
filter for Y/C separation ensures high clarity of the output
picture. The front-side seated connectors makes it very easy to
use.
|
|
SPECIFICATIONS:
|
Video/Audio Inputs:
|
2
Composite Videos
2
S-VHS, 4 AUDIO
|
Video/Audio Outputs:
2
Composite Video,
One
composite(Horizontal) sync./one Vertical sync.,
2
S-VHS,
1
Y.U.V or R.G.B.H.V switchable;
3
AUDIO
|
Switch :
It
allows you to choose 1 of the 4 inputs Video 1, Video 2,
S-Video 3, or S-Video 4 through a switch.
|
Power Supply: DC 15V
450mA
|
Dimensions 370(W) x 75
(D) x 50 (H) mm
|
Accessory One 3-RCA to
3-RCA A/V cable and DC adapter
|
| | | |
|

|
|
