Page 2

CAR DOOR

Page 1 - aluminum sill, guide shoes, ETC..

Page 3 - rollers, contact bridge, assembly bolt, ETC..

Page 4 - sliding arm, overhaul control device, ETC..

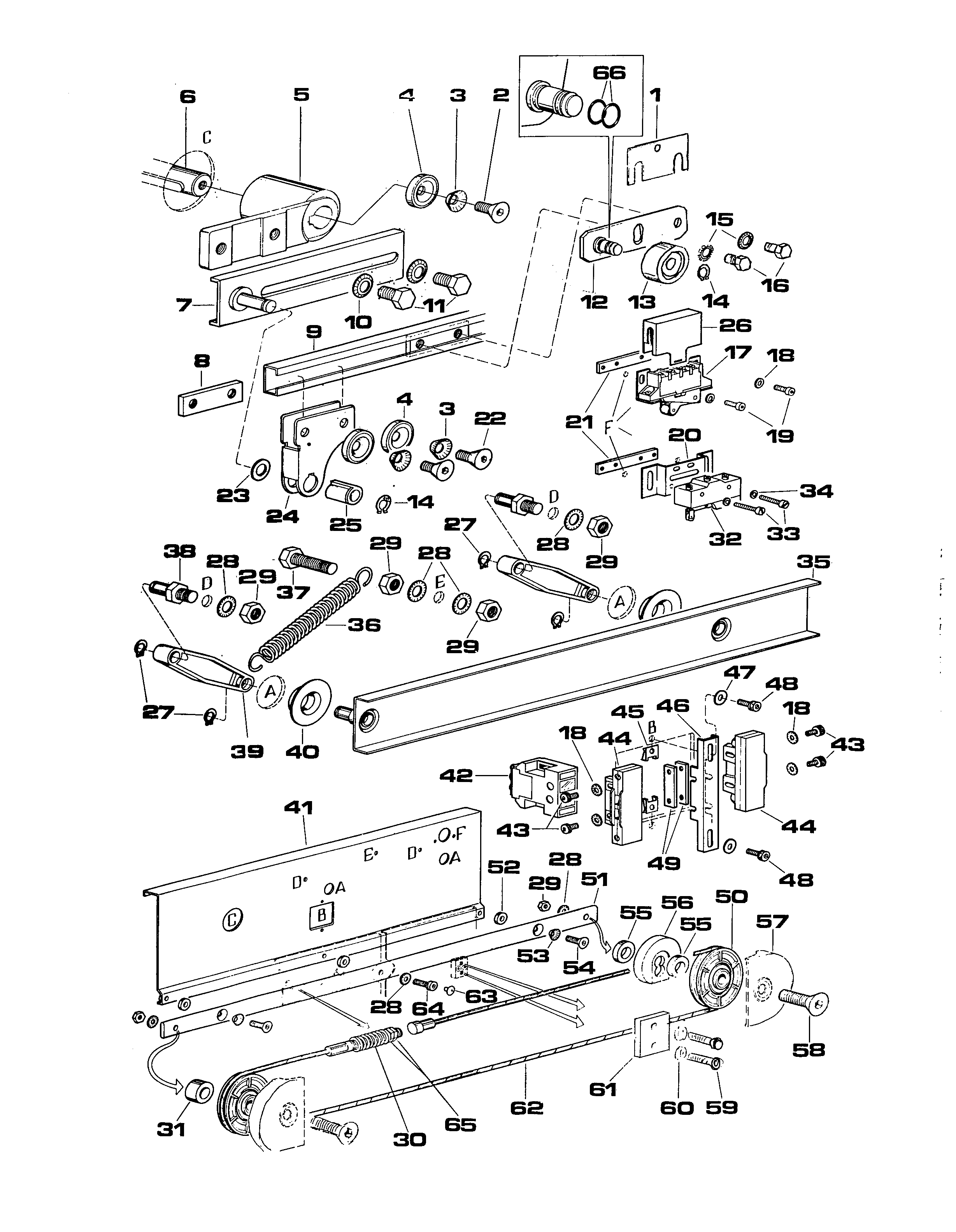

Find the part you need, then click the list box to get the PRICE, DESCRIPTION and PART NUMBER.

No. 1 - $AUD8.00 / THICKNESS FOR ROLLER SUPPORT / 3201.05.5149 No. 2 - COUNTERS SOCKET HEAD M8X20 / 7014.08.020 No. 3 - NOTCHED CONICAL WASHER DIAM 8 / 7030.00.008 No. 4 - $AUD4.00 / SPECIAL WASHER / 3201.05.6017 No. 5 - $AUD120.00 / MOTOR ARM / 3201.05.1013 No. 6 - DRIVE SHAFT / 3201.05.6035 No. 7 - FROM $AUD45.00 / MOTOR ARM EXTENSION / 3201.04.0002 L... No. 8 - $AUD8.00 / KEEP PLATE / 3201.05.7103 N0. 9 - FROM $AUD50.00 / DRIVE ARM / 3201.05.7107 L... No. 10 - CONTACT WASHER DIAM 10 / 7038.10.022 No. 11 - HEXAGON NUT M10X16 / 7012.10.016 No. 12 - $AUD30.00 / ROLLER SUPPORT / 3201.04.0061 No. 13 - $AUD5.00 / CAM CONTROL ROLLER / 3201.05.0013 No. 14 - $AUD2.00 / CIRCLIP DIAM 12 / 7024.00.012 No. 15 - CONTACT WASHER DIAM 8 / 7038.08.018 N0. 16 - HEXAGON NUT M8X16 / 7012.08.016 N0. 17 - $AUD85.00 / SCHMERSAL MICRO CONTACT RIGHT / 3201.05.9025 V01 N0. 17.1 - $AUD85.00 / SCHMERSAL MICRO CONTACT LEFT / 3201.05.9025 V02 No. 18 - NOTCHED WASHER DIAM. 4 / 7028.00.004 No. 19 - CAP HEAD SCREW M4X16 / 7011.04.016 No. 20 - $AUD4.00 / MICRO CONTACT SUPPORT / 3201.05.5147 No. 21 - $AUD8.00 / MICRO CONTACT KEEP PLATE / 3201.05.7021 No. 22 - COUNTERS SOCKET HEAD M8X16 / 7014.08.016 No. 23 - $AUD3.00 / NYLON WASHER / 3201.15.0013 No. 24 - $AUD20.00 / DRIVE ARM SOCKET / 3201.05.5142 No. 25 - $AUD5.00 / NYLON BUSHING / 3201.15.0012 No. 26 - $AUD10.00 / SCHMERSAL MICRO CONTACT COVER / 3201.05.9025 C No. 27 - $AUD2.00 / CIRCLIP DIAM10 / 7024.00.010 No. 28 - NOTCHED WASHER DIAM 10 / 7028.00.010 No. 29 - HEXAGON NUT M10 / 7002.00.010 No. 30 - $AUD5.00 / CABLE SPANNER SPRING / 3201.05.3002 No. 31 - SPACER 10MM THICK / 3201.05.6054 No. 32 - $AUD50.00 / BZ-2RW822-AZ MICRO CONTACT / 3201.05.9119 No. 33 - SCREW WITH NICK M3X25 / 7006.03.025 No. 34 - WASHER DIAM 3 / 7026.00.003 No. 35 - FROM $AUD80.00 / SLIDE FOR SAFETY EDGE / 3201.04.0030 L... No. 36 - $AUD15.00 / SPRING FOR SAFETY EDGE ARM / 3201.05.3010 No. 37 - SCREW M10X25 / 7012.10.025 No. 38 - $AUD8.00 / FULCRUM PIN FOR SAFETY EDGE LEVER / 3201.05.6016 No. 39 - $AUD7.00 / SAFETY EDGE ARM / 3201.05.0005 No. 40 - $AUD7.00 / RUBBER FOR AUTOMATIC RETURN MECHANISM / 3201.05.0021 No. 41 - SUPPORT PLATE / 3201.05.5018 No. 42 - $AUD50.00 / PZ 73 CONTACT / 3201.05.9006 No. 43 - CAP HEAD SCREW M4X10 / 7011.04.010 No. 44 - $AUD35.00 / HZ CONTACT / 3201.05.9005 No. 45 - FIXING DEVICE NUT M5 / 3201.05.9061 No. 46 - $AUD8.00 / HZ CONTACT SUPPORT / 3201.05.5114 No. 47 - WASHER DIAM 5 / 7026.00.005 No. 48 - CAP HEAD SCREW M5X16 / 7011.05.016 No. 49 - FIXING PLATE CONTACT / 3201.05.7111 No. 50 - $AUD30.00 / AIRCORD ROLLER / 3201.05.0010 No. 51 - SLIDE / 3201.05.7004 No. 52 - SPACER 6MM THICK / 3201.05.6010 No. 53 - NOTCHED CONICAL WASHER DIAM 10 / 7030.00.010 No. 54 - COUNTERS SOCKET HEAD M10X30 / 7014.10.030 No. 55 - SPACER 4MM THICK / 3201.05.6049 No. 56 - $AUD10.00 / DOOR BUFFER RUBBER / 3201.05.0001 No. 57 - $AUD10.00 / ANTI-DERAIL CAP / 3201.05.5045 No. 58 - COUNTERS SOCKET HEAD M10X50 / 7014.10.050 No. 59 - CAP HEAD SCREW M6X25 / 7011.06.025 No. 60 - NOTCHED WASHER DIAM 6 / 7028.00.006 No. 61 - $AUD4.00 / CABLE TIGHTENING PLATE / 3201.05.5057 No. 62 - FROM $AUD45.00 / SYNCHRONISING CABLE / 3201.05.4001 L... No. 63 - EDGE RUBBER / 3201.05.0056 No. 64 - CAP HEAD SCREW M10X30 / 7011.10.030 No. 65 - LOW HEXAGON NUT M8 / 7003.00.008 No. 66 - $AUD2.00 / 0-RING DIAM 12 / 3201.05.9146

Prices excludes GST and may change without prior notice.
