Page 3

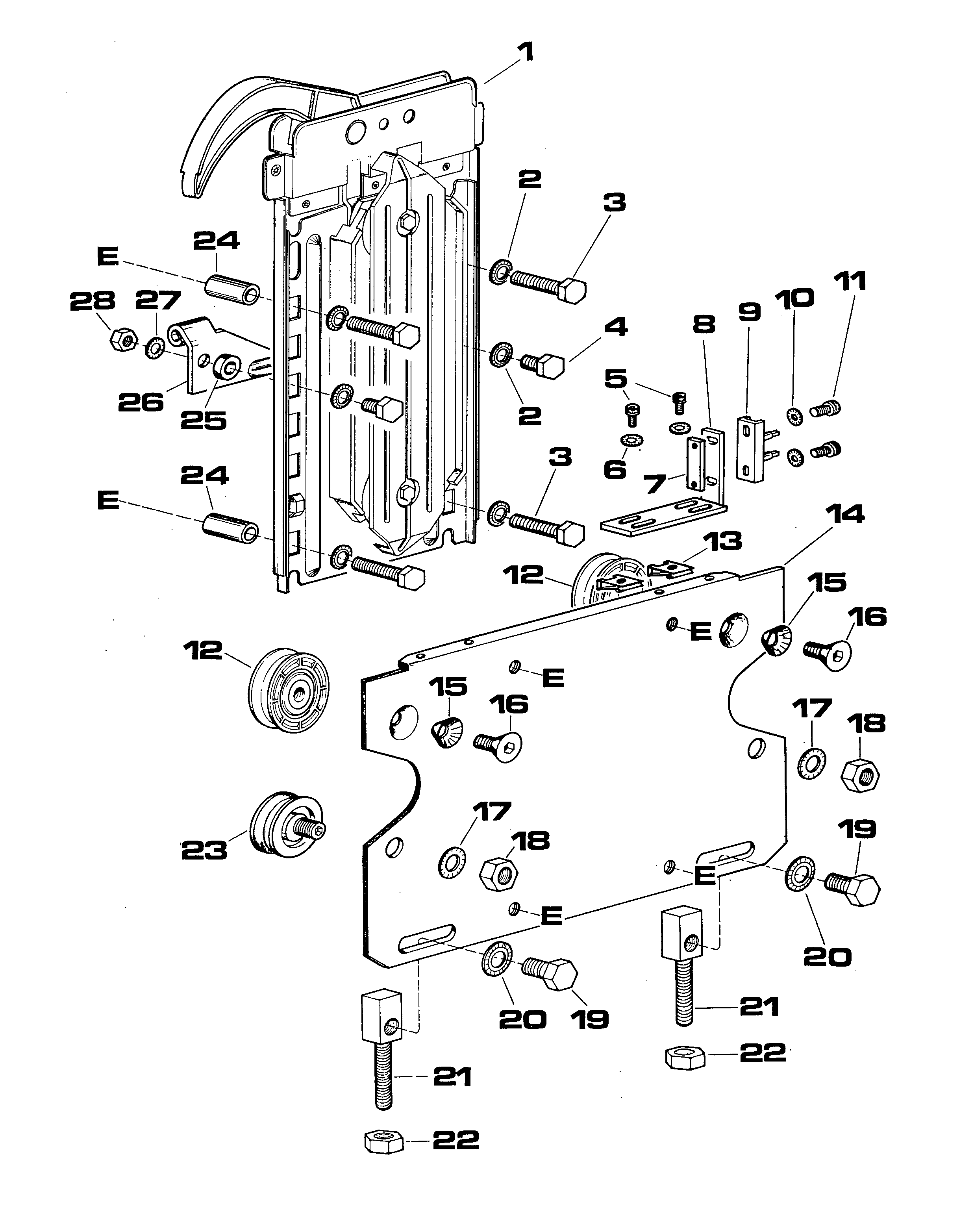

CAR DOOR

Page 1 - aluminum sill, guide shoes, ETC..

Page 2 - aircord, micro switches, ETC..

Page 4 - sliding arm, overhaul control device, ETC..

Find the part you need, then click the list box to get the PRICE, DESCRIPTION and PART NUMBER.

No. 1 - $AUD250.00 / RETRACTABLE CAM / 3201.02.0044 / A No. 2 - CONTACT WASHER DAIM 8 / 7038.08.018 No. 3 - SCREW M8X45 / 7012.08.045 No. 4 - SCREW M8X25 / 7012.08.025 No. 5 - CAP HEAD SCREW M5X16 / 7011.05.016 No. 6 - DOUBLE NOTCHED WASHER DIAM 5 / 7031.00.005 No. 7 - PZ 21 KEEP PLATE / 3201.05.7111 No. 8 - $AUD10.00 / PZ 21 BRIDGE SUPPORT / 3201.05.5146 N0. 9 - $AUD15.00 / PZ 21 REMOVABLE BRIDGE / 3201.05.9007 No. 10 - NOTCHED WASHER DIAM 4 / 7028.00.004 No. 11 - CAP HEAD SCREW M4X10 / 7011.04.010 No. 12 - $AUD20.00 / TOP ROLLER / 3201.05.0032 No. 13 - FIXING DEVICE NUT M5 / 3201.05.9061 No. 14 - CAR DOOR TRUCK / 3201.05.5084 No. 15 - NOTCHED CONICAL WASHER DIAM8 / 7030.00.008 N0. 16 - COUNTER SOCKET HEAD M10X20 / 7014.10.020 N0. 17 - NOTCHED WASHER DIAM 12 / 7028.00.012 No. 18 - HEXAGON NUT M12 / 7002.00.012 No. 19 - SCREW M10X20 / 7012.10.020 No. 20 - CONTACT WASHER DIAM 10 / 7038.10.022 No. 21 - $AUD4.00 / ASSEMBLING PANEL BOLT / 3201.05.6051 No. 21.1 - $AUD30.00 / ASSEMBLING PANEL BOLT KIT WITH NUTS / 3201.05.6051 No. 22 - HEXAGON NUT M10 / 7002.00.010 No. 23 - $AUD25.00 / BOTTOM ROOLER / 3201.05.0058 No. 24 - SPACER 30MM / 3201.05.6029 No. 25 - SPACER 6MM / 3201.05.6010 No. 26 - $AUD15.00 / CABLE COUPLING PLATE / 3201.05.5011 No. 27 - NOTCHED WASHER DIAM 8 / 7028.00.008 No. 28 - HEXAGON NUT M8 / 7002.00.008

Prices excludes GST and may change without prior notice.
