Page 4

CAR DOOR

Page 1 - aluminum sill, guide shoes, ETC..

Page 2 - aircord, micro switches, ETC..

Page 3 - rollers, contact bridge, assembly bolt, ETC..

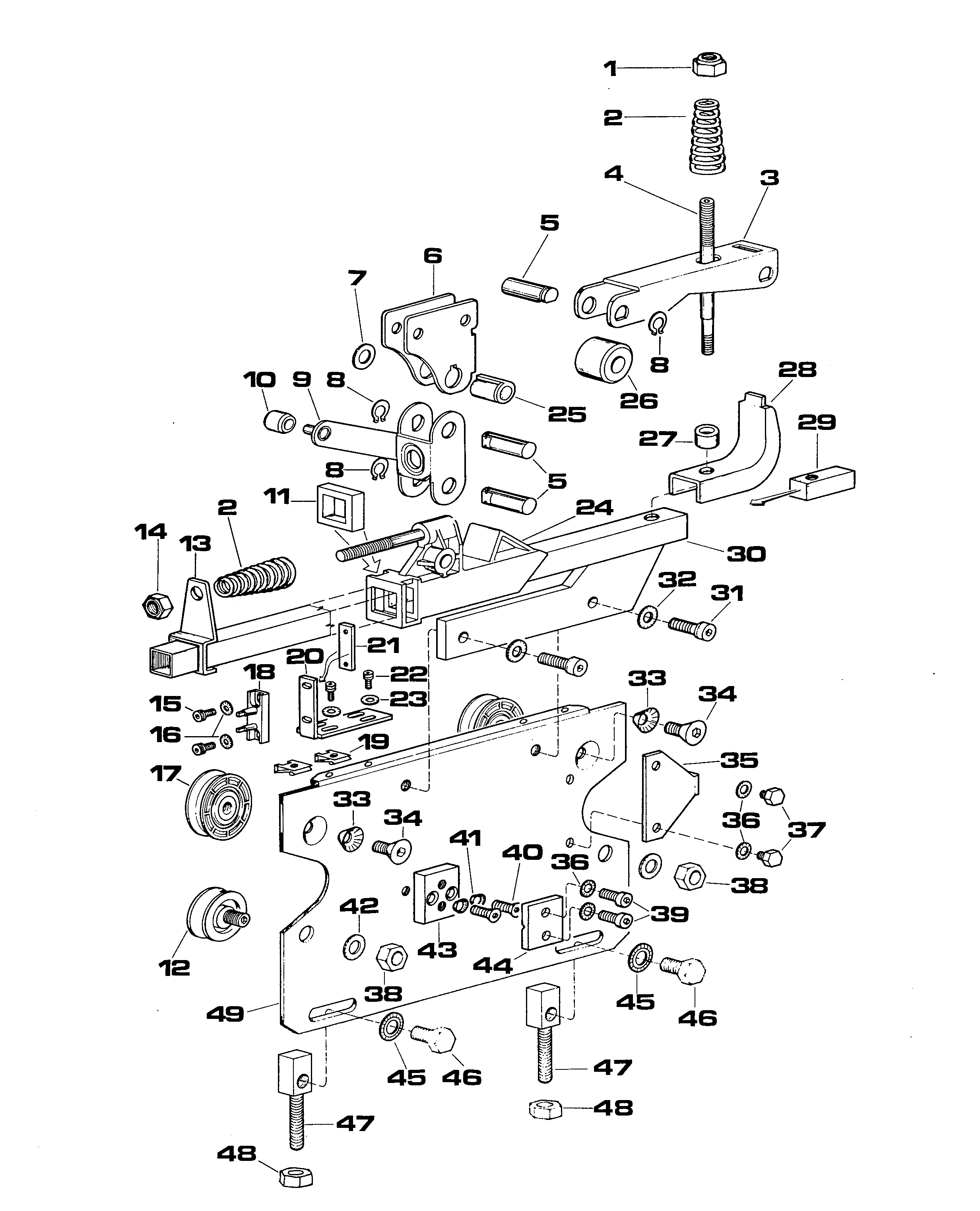

Find the part you need, then click the list box to get the PRICE, DESCRIPTION and PART NUMBER.

No. 1 - AUTO-CLAMPING NUT M12 / 7037.00.012 No. 2 - $AUD10.00 / SPRING RELEASE AND SAFETY EDGE / 3201.05.3006 No. 3 - $AUD20.00 / RELEASE LEVER / 3201.05.5003 No. 4 - $AUD12.00 / RELEASE PIN / 3201.05.6081 No. 5 - $AUD5.00 / FULCRUM BOLT / 3201.05.6015 No. 6 - $AUD20.00 / TRANSMISSION ARM COUPLING / 3201.05.5142 No. 7 - $AUD3.00 / NYLON WASHER / 3201.15.0013 No. 8 - $AUD2.00 / CIRCLIP DIAM 12 / 7024.00.012 N0. 9 - $AUD25.00 / RIGHT OVERHAUL CONTROL DEVICE / 3201.04.0014 V02 N0. 9.1 - $AUD25.00 / LEFT OVERHAUL CONTROL DEVICE / 3201.04.0014 V01 No. 10 - $AUD5.00 / WASHER FOR OVERHAUL DEVICE / 3201.05.0006 No. 11 - $AUD3.00 / FELT PACKING / 3201.05.7001 No. 12 - $AUD25.00 / BOTTOM ROLLER / 3201.05.0058 No. 13 - $AUD10.00 / REINFORCE FOR OVERHAUL DEVICE / 3201.05.5106 No. 14 - AUTO-CLAMPING NUT M10 / 7037.00.010 No. 15 - CAP HEAD SCREW M4X10 / 7011.04.010 No. 16 - NOTCHED WASHER DIAM 4 / 7011.04.010 N0. 17 - $AUD20.00 / TOP ROLLER / 3201.05.0032 No. 18 - $AUD15.00 / REMOVABLE BRIDGE PZ 21 / 3201.05.9007 No. 19 - FIXING DEVICE M5 / 3201.05.9061 No. 20 - $AUD6.00 / REMOVABLE BRIDGE PZ 21 SUPPORT / 3201.05.5146 No. 21 - BRIDGE KEEP PLATE / 3201.05.7111 No. 22 - CAP HEAD SCREW M5X16 / 7011.05.016 No. 23 - DOUBLE NOTCHED WASHER DIAM 6 / 7031.00.006 No. 24 - $AUD25.00 / RELEASE DEVICE / 3201.05.0011 No. 25 - $AUD5.00 / NYLON BUSHING / 3201.15.0012 No. 26 - $AUD5.00 / RELEASE ROLLER / 3201.05.0007 No. 27 - SPACER 10MM THICK / 3201.05.6054 No. 28 - $AUD20.00 / RELEASE LEVER SUPPORT / 3201.05.5095 No. 29 - $AUD10.00 / THREADED BLOCK / 3201.05.6082 No. 30 - $AUD60.00 / SLIDING ARM RELEASE BLOCK / 3201.04.0004 L... No. 31 - CAP HEAD SCREW M8X25 / 7011.08.025 No. 32 - NOTCHED WASHER DIAM 8 / 7028.00.011 No. 33 - NOTCHED WASHER CONICAL DIAM 10 / 7030.00.010 No. 34 - COUNTERS SOCKET HEAD M10X20 / 7014.10.020 No. 35 - SUPPORT PLATE FOR CAR DOOR TRUCK / 3201.15.5172 No. 36 - NOTCHED WASHER DIAM 6 / 7028.00.006 No. 37 - SCREW M6X10 / 7012.06.010 No. 38 - HEXAGON NUT M12 / 7002.00.012 No. 39 - CAP HEAD SCREW M6X20 / 7011.06.020 No. 40 - COUNTERS SOCKET HEAD M6X16 / 7014.06.016 No. 41 - NOTCHED CONICAL WASHER DIAM 6 / 7030.00.006 No. 42 - NOTCHED WASHER DIAM 12 / 7028.00.012 No. 43 - PLATE FOR CABLE TIGHTENING / 3201.05.7012 No. 44 - $AUD4.00 / CABLE TIGHTENING PLATE / 3201.05.5057 No. 45 - CONTACT WASHER DIAM 10 / 7038.10.022 No. 46 - SCREW M10X20 / 7012.10.020 No. 47 - $AUD4.00 / PANEL ASSEMBLING BOLT / 3201.05.6051 No. 47.1 - $AUD30.00 / PANEL ASSEMBLING BOLT KIT WITH NUTS / PA/D2 No. 48 - HEXAGON NUT M10 / 7002.00.010 No. 49 - CAR DOOR TRUCK / 3201.05.5084

Prices excludes GST and may change without prior notice.
