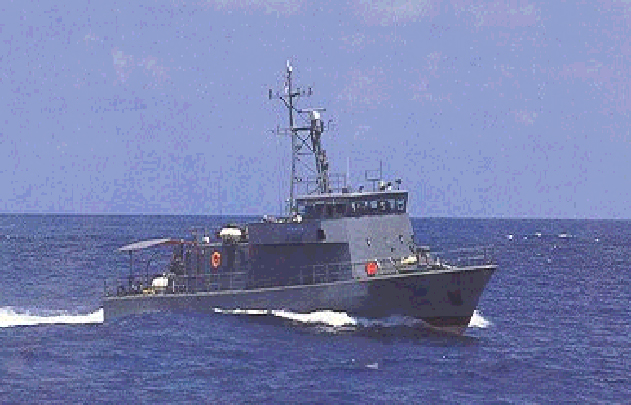

Diving Support Vessel
| Name: |
No. |
Launched |
Commissioned |
| Bedok |
M105 |
24
Jun 93 |
7
Oct 95 |
| Type : |
"JUPITER" CLASS DIVING
SUPPORT VESSEL |
|
|
| Unit: |
NDU |
|
|
| Length : |
35.8 meters |
|
|
| Beam : |
7.1 meters |
|
|
| Draught : |
2.3 meters |
|
|
| Displacement : |
170 tons full load |
|
|
| Engines: |
2 Deutz MWM TBD234V12 diesels (2
shafts) producing 1 Mw (1 360Hp); bow thruster |
|
|
| Speed: |
14 knots |
|
|
| Range: |
200 at 14 knots |
|
|
| Crew: |
33 with 5 officers |
|
|
| Armament: |
1 Oerlikon 20mm GAM-B01 |
|
4 CIS 50 12.7mm HMG |
|
|
| Radars: |
Navigation – Racal Decca (I
Band) |
