tech

TECHNOLOGY

GLOSSARY

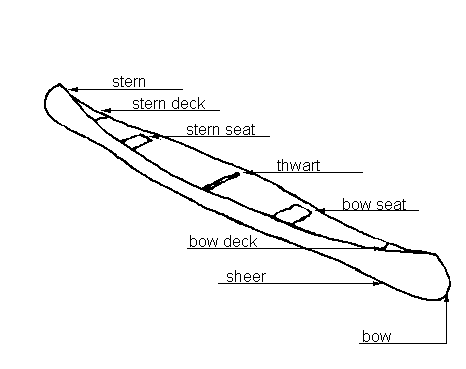

Look at a traditional birchbark canoe, from Native Org: http://www.nativeweb.org/NativeTech/brchbark/bigcanoe.htm

TOP VIEW

The ratio between width (beam) and length gives a speed boat with low ratio (ex. 1:10) or a cargo boat for fishing with high ratio (ex. 1:3)

Old Town Canoe specifications (historical): http://www.wcha.org/catalogs/old-town/specific.gif

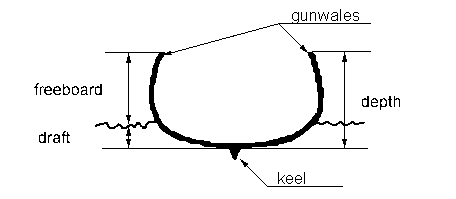

CUTAWAY

THE SIDES

Sides with tumblehome are comfortable to paddle. Frare ones help to keep waves outside. Plumb is a compromise

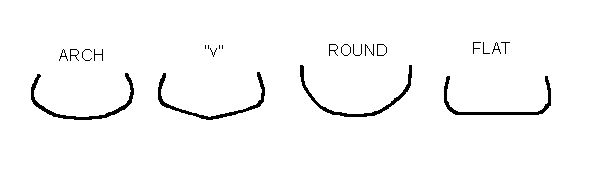

THE BOTTOM

A round bottom is not very stable and is used mainly in races. A flat bottom is good for big charges. An arch bottom is a good and usual compromise. A "V" bottom is also good for speed, but is difficult to turn

SIDE VIEW

A high rocker canoe is good for quick pivots and turns in a river, a straight keel is berrer suited for speed on flat water

BOW STYLES

	ALGONQUIAN		ALGONQUIAN FUR TRADE
	ATHABASCA		CREEK
	KOOTENAY		MICMAC
	OJIBWAY		PASSAMAQUODDY

See also Canadian Museum of Civilization, Wave Eaters: http://www.civilization.ca/membrs/fph/watercraft/wainteng.html

MATERIAL

BIRCHBARK

The oldest kind of boat, now few people can make one, hand made.

WCHA: http://www.wcha.org/birchbark.html

WOOD

Generally heavy boats, must be soaked to keep water.

WHCA: http://www.wcha.org/wood.html

WOOD AND CANVAS

Fragile, needs care and maintenance

WCHA: http://www.wcha.org/wood-canvas.html

STRIPPER

Strips of wood betbeen two layers of fiberglass. Possible to self made.

WCHA: http://www.wcha.org/cedar_strip.html

ALU

Not very light. Makes noise. Cold in winter end hot in summer

FIBERGLASS

Mainly good for flatwater. Easy to repair.

KEVLAR

Same as fiberglass, but more expensive material.

ABS, ROYALEX, RAM-X

Usually the shape is not very good, and the form can change. Very good in white water because slips over the rocks.

See also material specifications from Mad River Canoe: http://madrivercanoe.com/mrc/htm/construct.shtml

LINKS

To learn more, go to:

Canoe shapes and sizes in Gorp: http://www.gorp.com/gorp/publishers/menasha/pad_tand.htm

How to chose a canoe in Gorp: http://www.gorp.com/gorp/publishers/ics/how_cano.htm

To find canoe builders, go to page Gear
