90-110 series vehicles

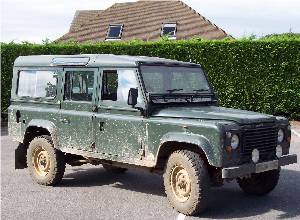

110 Station Wagon

90 & 110 Series
Production 1983-1990

Wheelbases
92.9"; 110"; 127"

Engines
2286cc 4-cyl petrol; 2286cc 4-cyl diesel;
2494cc 4-cyl petrol; 2494cc 4-cyl diesel;
2494cc 4-cyl turbo diesel; 3528cc V8 petrol

Bodies
Station Wagon; Hard Top; Pickup; Double Cab; Various Special Bodies

History
The production started in 1983 with the 110 models, the 90 models followed in 1984. These models were developed from the Stage-1 which had introduced the flat front, this was now established as the Landrover look.

Land Rover utilised developments pioneered on the Range Rover with the introduction of a chassis that gave massive axle articulation and using long-travel coil spring suspension. Full time 4-wheel drive with lockable centre differential is standard and PAS became an option extra. The vehicle has proved to have excellent approach, departure and ramp break-over angles making it a very capable off-road vehicle.

Early models continued to have diagonal sliding windows and separate door tops of the Series III. Theses were replaced with winding handle type windows and one-piece door tops in 1987.

The interior continued to be van like; the Country Station Wagons were a little more refined with their higher specifications including soundproofing and a car-like trim. These Station Wagons could accommodate either seven passengers in the 90 or 12 passengers in the 110. However, the 12-seater model was more accurately a 10-seater and was sold as such outside the UK.

The 2.5l engines replaced the 2.25 engines in 1985 just ahead of the introduction of the V8. The V8 engine came straight from the Range Rover but was detuned, this engine proved very popular in the USA.

The vehicle was re-branded in 1990 becoming the Defender when the 200Tdi engine was introduced.

Specs Comparison Table
Wheelbase	90"	110"	127"
Production	1984-90	1983-90	1983-90
Engine	2.3L petrol, 2.3LD 2.5L petrol, 2.5LD 3.5L V8 introduced 1985	2.3L petrol, 2.3LD 2.5L petrol, 2.5LD 3.5L V8
Weight	1770-1870kg	1885-1995kg	2177kg
Clearance Wading Depth	191-229mm 500mm	215mm 500mm	215mm 500mm
Height Width Length	1889mm 1.79m 3.88m	2035mm 1.79m 4.43-4.63m	2035mm 1.79m 5.13m
Track Turning Circle	1.48m 5.85-6.67	1.48m 6.4-7.18	7.54m
Gearbox	Initially fitted with 4 speed all Synchromesh Late models fitted with 5spd LT77 all Synchromesh
Body Characteristics	Flush front
Insurance Groups	7-10
