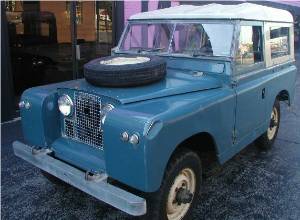

1965 SWB
Station Wagon Station Wagon

Series IIa
Production 1961-1971



Wheelbases
88"; 109"

Engines
2286cc 4 cyl petrol; 2286cc 4 cyl Diesel; 2625cc 6 cyl petrol

Bodies
Pick up; Station Wagon; Hard Top; Soft Top; Truck Cab;
Forward Control; Various Special Bodies

History
Outwardly the same appearance to the Series II except for a change in the front apron panel, from an angular panel to a gentle curved panel. A mechanical change was that the steering arms were now attached to the bottom of the swivels.

A 1967 revamp of the interior lead to a new dashboard and a single concealed wiper motor mounted in the dash. Landrovers now became negative earthed and the sill panels narrowed from 5" to 3"

Twin light In 1969 the headlights moved to the wings, just ahead of new traffic regulations in the UK. This lead to a variant with the headlights in both the old and the new positions.

A batch of these twin headlight models was supplied to the MOD to be used in a two wheel drive trial. A bright-spark had noted that Artillery Regiment Land Rovers spent more time gun towing on roads than off road, the suggestion was it would be less wearing mechanically to use 2 wheel drive. As drivers with free wheeling hubs know the saving in wear and tear is negligible to the point of unnoticeable without special equipment.

The Forward Control body was available from 1961. A Lightweight model IIa produced for the MOD and was available from 1968, developed as an air-portable vehicle. A special 1 Ton model was introduced in 1969.


Specs Comparison Table
Wheelbase 88" 109"
Production 1961-1969
1969-1971
Engine 2.25L petrol
2.25LD introduced 1962
2.25L petrol
2.25LD introduced 1962
1967 on 2.6L petrol
Weight 1339kg 1497kg
Clearance
Wading depth
203-248mm
500mm
248mm
500mm
Height
Width
Length
1980mm
1.68m
3.62m
2070mm
1.68m
4.44m
Track
Turning circle
1980mm
1.31m
11.58m
2070mm
1.31m
14.32m
Gearbox Single helical constant mesh, 3rd & 4th synchromesh
Body
Characteristics
Steel dashboard
Protruding door hinges
1961-69 headlights between wings
1969-71 headlights in wings
Insurance Group 4-5 4-5 / 5-6 (2.6l)
