Trayectoria de un proyectil en 3D

En este programa voy a graficar el movimiento de un proyectil en 3D usando OpenGL, primero voy a plantear y resolver el sistema de ecuaciones diferenciales del movimiento, donde V es la velocidad inicial de disparo, rho,theta son los angulos de tiro, la unica fuerza exterior que actua es la aceleracion de la gravedad.

Las ecuaciones son

condiciones iniciales del sistema

donde las componentes de V con relacion a los ejes de coordenadas son

intengrando dos veces

empleando las condiciones iniciales para t=0

luego la solucion queda

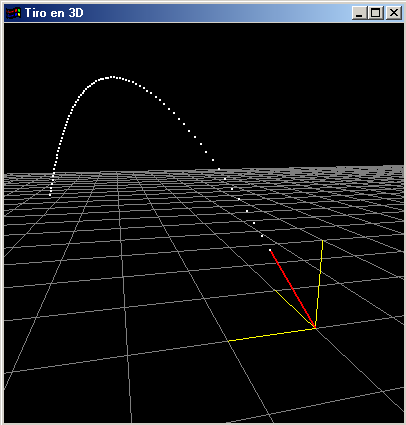

en el grafico, los puntos de la trayectoria estan en blanco, los ejes de coordenadas en amarillo, en rojo el vector que representa la direccion de tiro, los datos del tiro son:

Código fuente

Descarga del codigo fuente

#include <stdlib.h>
#include <math.h>
#include <stdio.h>
#include <GL/glut.h>

#define PI 3.141592654
#define g 9.8

float x_init, y_init, z_init;
float rho, theta;
float V;

void Dibujar_Grid(GLfloat GridScale, GLfloat XSteps, GLfloat ZSteps)
{
 GLfloat zExtent, xExtent;
 GLfloat xLocal, zLocal;
 int loopX, loopZ;

 glBegin( GL_LINES );
 zExtent = GridScale*ZSteps;
 for(loopX = -XSteps; loopX <=XSteps; loopX++ )
    {
    xLocal = GridScale*loopX;
    glVertex3f( xLocal, 0.0, -zExtent );
    glVertex3f( xLocal, 0.0,  zExtent );
    }
 xExtent = GridScale * XSteps ;
 for(loopZ = -ZSteps; loopZ <= ZSteps; loopZ++ )
    {
    zLocal = GridScale * loopZ;
    glVertex3f( -xExtent, 0.0, zLocal );
    glVertex3f(  xExtent, 0.0, zLocal );
    }
 glEnd();
}

void Dibujar_VectorTiro(void)
{
 float x, y, z;
 float l;

 l=1.0;
 x=l*sin(rho)*sin(theta);
 y=l*cos(rho);
 z=l*sin(rho)*cos(theta);
 x_init=x;
 y_init=y;
 z_init=z;
 glBegin(GL_LINES);
 glVertex3f(0.0, 0.0, 0.0);
 glVertex3f( x, y, z);
 glEnd();
}

void Dibujar_Ejes(void)
{
 glBegin(GL_LINES);
 //eje X
 glVertex3f(0.0, 0.0, 0.0);
 glVertex3f(1.0, 0.0, 0.0);
 //eje Y
 glVertex3f(0.0, 0.0, 0.0);
 glVertex3f(0.0, 1.0, 0.0);
 //eje Z
 glVertex3f(0.0, 0.0, 0.0);
 glVertex3f(0.0, 0.0, 1.0);
 glEnd();
}

void Dibujar_Trayectoria(void)
{
 float x_pos, y_pos, z_pos;
 float Vx, Vy, Vz;
 float t, dt;

 x_pos=x_init;
 y_pos=y_init;
 z_pos=z_init;
 Vx=V*sin(rho)*sin(theta);
 Vy=V*cos(rho);
 Vz=V*sin(rho)*cos(theta);
 t=0.0;
 dt=0.02;
 glBegin(GL_POINTS);
 while (y_pos>=0)
	{
	x_pos = Vx*t + x_init;
	y_pos = Vy*t-0.5*g*t*t + y_init;
	z_pos = Vz*t + z_init;
	glVertex3f(x_pos, y_pos, z_pos);
	t=t+dt;
	};
 glEnd();
}

void iniciar(void)
{
 glClearColor(0.0, 0.0, 0.0, 0.0);
 glPointSize(2.0);
 rho=PI/4.0;
 theta=PI/8.0;
 V=10.0;
}

void display(void)
{
 glClear(GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT);
 glPushMatrix();
 gluLookAt(2.0, 2.0, -3.0, 0.0, 0.0, 5.0, 0.0, 1.0, 0.0);

 glLineWidth(1.0);
 glColor3f(0.5, 0.5, 0.5);
 Dibujar_Grid(1.0, 20.0, 20.0);

 glColor3f (1.0, 1.0, 0.0);
 Dibujar_Ejes();

 glLineWidth(2.0);
 glColor3f (1.0, 0.0, 0.0);
 Dibujar_VectorTiro();

 glColor3f (1.0, 1.0, 1.0);
 Dibujar_Trayectoria();

 glPopMatrix();
 glFlush();
}

void reshape(int w, int h)
{
 if (!h)
	return;
 glViewport(0, 0,  (GLsizei) w, (GLsizei) h);
 glMatrixMode(GL_PROJECTION);
 glLoadIdentity();
 gluPerspective(60.0, (GLfloat) w/(GLfloat) h, 1.0, 100.0);
 glMatrixMode(GL_MODELVIEW);
 glLoadIdentity();
}

void keyboard(unsigned char key, int x, int y)
{
 switch (key)
   {
   case 27: exit(0);
             break;
   }
}

int main(int argc, char **argv)
{
 glutInit(&argc, argv);
 glutInitWindowSize(400, 400);
 glutInitDisplayMode(GLUT_RGB | GLUT_SINGLE);
 glutCreateWindow("Tiro en 3D");
 iniciar();
 glutDisplayFunc(display);
 glutReshapeFunc(reshape);
 glutKeyboardFunc(keyboard);
 glutMainLoop();
 return 0;
}
