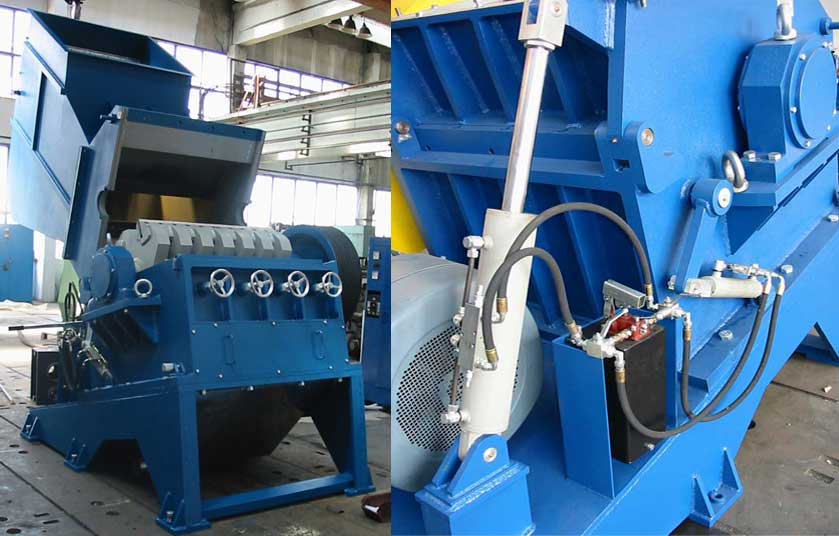

EQUIPMENT OF THE GRANULATORS:
Hydraulic unit for removing of the hopper - Full protection at operation - Total stop before various accesses to the machine - Full automated control - Very strong frame - Strengthened design of the rotor and the cutting chamber - Easy change of the screen - Hydraulic unit suitable for the opening of the screen cradle (for Kompass 800/1200 and the Kompass 800/1600) - Preventive Clutch between the shaft and the pulley for the rubber belts from the motor drive - Coated with Zinc before the painting - Very low level of the noise - Very low rate of the dust - Prolong term for a life of the knives before the changing for sharpening - Adjustable knives - A jig where the rotor knives can be pre-set outside of the machine so that you can change them quickly without adjusting them in the machine.
Knives steel - X153CrMoV12 = D2 = 1.2379 ;
Bearings - SKF or FAG ; Rubber belts for the motor drive - made in Germany ;
Motors (Delivered from Italy or Germany) - from 4 kW up to 160 kW / 1'500 rpm or 1'800 rpm / 3 phases / (60 Hz or 50 Hz) 480/460/400 V / IP54 or IP55 / Thermal Protection ;
The motor controls (Star-Delta) are manufactured with units from "Square D" - the US or "Telemechanique"- France. We can supply the machine and with Soft-Start for the motor.
The different design of the rotors - in line, staggered or chevron, open or solid ... with shear cutting allows the machines to process all kinds of plastic and rubber: drums, containers, pipes, tyres, jars, P.E.T. scrap - bottles and pre-forms, pails, plastic chairs and tables, plastic plant pots and plant pot holders, rubber pieces 100% steel free, ABS, PE, PVC, LDPE, HDPE, Polystyrene, plastic trays and crates, Polypropylene, thermoplastics with glass fillers, plastic bins, plastic bags, plastic pallets, rubber mats, waste from plastic and rubber industry, all kind of plastic films and foils and agricultural films ... etc.
We can prepare for you and a detailed project connected with your needs or the needs of your customers. In the project will be included the important points connected with the kind of the material which you or your customer want to process, the physics-chemical parameters of the material, the different ways of processing/recycling, the needed equipment suitable to reach customer's goal, the operation of this equipment, the parameters of the end material and the possibilities for usage of this material. Detailed description of each separated machine from the equipment, the work with this equipment and the purpose of each separated unit. The needed workers which will operate with the equipment, the needed el. power, water and air consumption ... etc.
We can manufacture parts for your equipment or whole machines.
This will help you to do better selling’s in Europe and the European Union.
You will offer your equipment without VAT and Duty (if the equipment is manufactured from us) for the countries members of the European Union and the prices will be more attractive for the potential customers.
 |
GRANULATORS
| PLASTICS
EXTRUDERS | SEPARATORS | BELT CONVEYROS |
 |
