Aftermarket Gauge Installation

To install the gauges pull off the clear cover and slide the gauges on. You might need to take off the needles for the temperature/gas gauge. TAKE NOTE as to where the needles are pointing, there are no markings once you take the needle off. If worse comes to worse, fill the tank up and then align the needle.

To remove the old bulbs, remove the 4 black screws holding in the white plastic. The whole cluster will slide out, just rotate it around since there are still wires attached.

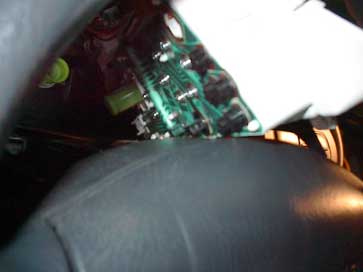

Sorry for the blurry picture, but that's what the circuitry looks like.

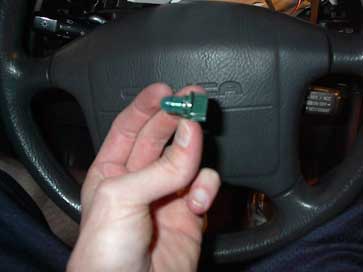

The bulbs you want to take out have a green plastic back, the other black ones are not the gauge lights. There are 5 in all, 4 this size and one smaller. To get them out, simply turn them a half a rotation or so counter clockwise.

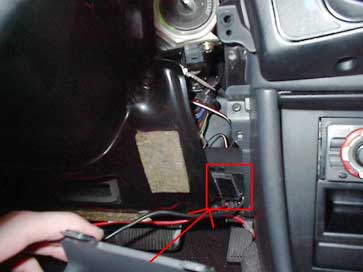

I mounted the inverter below the steering wheel. Just put some double sided tape on it and stick it in that little pocket.
