    Regarding Spurgin Bad Boy Oil Cooler Kerry writes:

    They run about $275.00. It sounds a little steep until you get the cooler in your hands. Everything is top notch, bullet-proof, even the lines and fittings are the best that can be found. Thermostat is built into the adapter. It is very simple in design and it works superbly. Spurg even includes a billet oil line clamp that is second to none. . . He is very receptive and puts out a quality product. You can deal directly with him at motorcycle-innovations

    Kerry

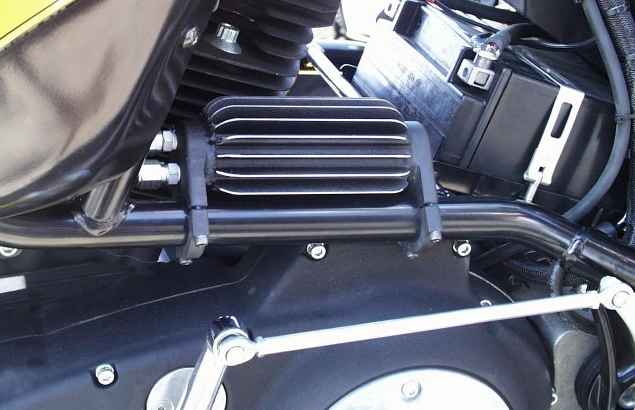

    Pic of the cooler mounted on Luanne's X1

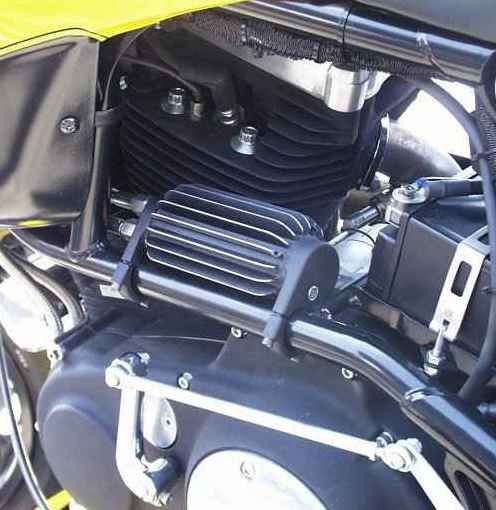

    Another pic


    Garry Wrote:

    Regarding an X1 Tank Mask:

    I have the Buell one, Its called the Phantom Tank Mask for the X1. Its a soft, black leather look, vinyl, protects against scratches from jackets. Kind of a pain to put on, I took my tank cover off to put mine on. It has a Blue Pegasus on it which doesn't really go with the yellow, but its OK. I think it lists for $40.00. Its attached with glue patches and I'm wondering, what it will be like to take off. But I'm certain over time my tank would get scratched with out it. I need to take some pictures of my bike, when I do I'll scan one and send it. gb


    By JB2 on Sunday, May 2, 1999 - 01:47 am

    Tire Wars : After rippin up 4 rears and 2 fronts of the Dunlop 205 variety I decided on a set of the BT57s from Bridgestone . Initial report is these things GRIP and RIP !!! They are most sure footed tire I've had under me since switching to Buells . I'll keep you posted on the wear , was only getting about 6K out of the 205's on the rear and about 10K on the fronts


    Frank Riecke has customized his X1.



    If you want to put a 130/100 Watt headlight bulb in your Buell, Napa auto parts has one.
    Here is the part number.

    See the Vance and Hines provided Dyno.



    SS2r on an X1.


    By Paul S. on Tuesday, March 9, 1999 - 09:44 am:

    Bullett slip on muffler

    Got a reply today from Rick at Bullett and he said the
    bullett slip on muffler fits the X1 and clears the chin
    fairing. Black is $150.00 with free shipping in the USA.

    Paul



    By Mykl on Monday, March 8, 1999 - 12:53 am:

    FYI: I added a Vance & Hines to my X1 about 3 weeks ago and the
    performance increase has been well worth the money and 45 min.
    it took me to install it. The downside has been the no idle
    when cold (1st 5 min.)and backfire(lots and at all rpm). The
    first thing I thought was there must be a problem with the
    O2 sensor,or the ECM (a little joke). Anyway I exited the
    breathers out of the air-box to under the rear of the bike.
    I finished up with a crankcase air filter from Fram #ba3812.
    Big difference, I dont think the FI liked the venting at all
    and if you change your exhaust, change the venting with it.
    I did look into the crank vent,couldn't part with the money.



    By Brad on Friday, February 19, 1999 - 12:07 pm:
    . . .
    3. My dealer is putting together some X-1s with S3 fairings (nice combo):

    . . .
    All: My dealer has started doing some X-1's with S3T fairing conversions.
    They put one on the floor Saturday and it sold in 10 min. Reactor Yellow
    and it looked AWESOME!



    By KerryX1 on Tuesday, February 16, 1999 - 12:41 am:
    Dana--I trimmed about 3/4's of an inch off the bottom of the tail
    piece and put the top tag screws inside the storage area. Put a
    license frame with LED's in it for a redundant tail light.
    Small change but very noticable!--Getting to the top bolts
    inside the tailpiece is tough. Solve the theft problem-I also
    just got done installing a Thunderpage alarm in the X1-Works great!
    Pages me if someone is even near the bike-takes the worry out of
    the diner stops!

    KerryX1



    By Peter van Emmerik on Saturday, February 13, 1999 - 06:34 pm:
    I've recently bought an X1 Lightning and heard of a few people
    installing s3t handle bars for added comfort.
    Are any changes to the wiring or hydraulic lines needed
    to install these bars?
    Thanks for any replys.


    ------------------------------------------------------------
    By Kerry on Saturday, February 13, 1999 - 08:18 pm:
     . . .

    Peter: S3T bars fit the X1. All wiring, throttle and idle cables are
    the same as well as the brake line. You will have to reroute some of
    the wiring behind the bars (especially the clutch switch) but everything
    works. Also, the S3T bars control locating holes will have to be
    redrilled to properly locate your grips, master cylinder and clutch.
    Easiest way is to wrap the new bars with masking tape, install the
    controls and just snug up the screws. When you remove the controls
    the precise location to drill the bars for the locating pin will be
    easy to see dimpled into the tape. Get a new left side grip to make it
    easier too! Was well worth the effort and fits Luanne's riding
    style perfectly.

    Kerry & Luanne
    '99 X1
    '98 XLHC
    '98 FLSTC


    : I am determined to get at least 100 rear wheel hp out of my 99 X1. I
    : realize head work, pipes, intake, ignition are needed. I am wondering
    : if anyone has the lowdown on some larger injectors? Single or duel fire?
    : and just any information on the fuel injection (more than what you read
    : in magazines). and possibly any DDFI hacking. What can I safely raise
    : the compression ratio to? I am one of the lucky one's as I have full use
    : of a dyno. Just needing to know where to start. any information will
    : be helpful.
    : thanks


    In Reply to: 100+ RWHP X1 posted by SonicBurn on January 20, 1999 at
    23:46:58:

    Hey guy! The good news is that it can be done. The bad news is that the
    software to re-map the ECM is not readily available yet. I am going to a
    meeting with Erik Buell in Febuary and he and I have already talked about
    it once before. When I know, everybody will know. The ECM is the limiting
    factor. I will keep you posted though because last time I talked to Erik
    he mentioned us doing some R&D on the X1. Hope I helped!
    Thanks and God bless.

    Brian Nallin
    Nallin Racing/Shreveport Harley-Davidson
    Nallin Racing Head Service



    By Hank on Saturday, February 13, 1999 - 08:45 pm:
    Just spent the afternoon installing my V & H carbon fibre
    muff on my X1...the bracket positioned the muff in a downward
    angle..def not parallel with the shock can...jumped on the M2
    (38 degrees) and blasted to the shop for mods..also gave me a
    chance to re-acquaint myself to the broken-in Alum V&H
    sound..hiway allowed speed to 110..feels good again..finished
    installation and went for a blast..Comin' off a light, clutch
    already out..on the gas hard..IT STOOD UP..it never did that
    before..what a freakin' blast..hesitation still exists at steady
    throttle..BUT I DON'T DO THAT TOO OFTEN NO MORE..5 hours later
    I'm still giddy..can't wait for a NEW MODULE..

    re: Vance and Hines Exhaust for the X1

    Hi Chris..ya..the X1 was the one that stood [ he means throttle
    only wheelies] ..makin' me laugh thinkin' about it!!. . . I'm
    definately happier with the performance of the X1..still needs
    a new map on that FI though. These shitboxes seem to need alot
    of fuel to be happy...so, I can only imagine what a "fat" map
    would do.....do the pipe..you'll be happy..what pipe you thinkin'
    about? This c/f V&H looks the balls...shortened up the rear
    mount by at least 2"...looks more pro..bike also looked pretty
    mean without chin spoiler!..already threw away all rear wheel
    plastic,belt/sprocket crap... "nothin' " is lighter and cheaper
    than carbon fibre..makes bike look "lighter"..might keep it
    off...let me know what you get and how it goes!
    Hank



    -----Original Message-----
    From: Frank Riecke [mailto:riecke@qni.com]
    Sent: Friday, February 12, 1999 4:48 PM
    To: Woodard, Chris
    Subject: Re: Hi Ya the 2nd


    I forgot,
    My filter element was loose, too.
    The K&N filter fits better, ironic, isn't it?
    Performance wise I couldn't tell a difference
    but I hope that will change when we get a tuneable
    ECM. I can't wait to get rid of the !@#$% Buell part.
    Frank



    Re: Staintune Exhaust

    Chris, they have spec'd out an X1 and we hope to have something
    in a month or two. I would ask that you check back with
    me in around a month to see where we stand.
    --
    Jeff Hanrahan
    CBT Imports/National Sales Manager
    (800)782-4686
    URL http://www.cbtimports.com
    Email: Jeff@cbtimports.com



    Chris: re missing X1 tank mount tabs

    ...mine are also missing...Manchester HD (NH) had to replace
    tank on my X1 due to faulty vent line causing collapse of fuel
    cell..i had removed the cover myself..trying to find out why
    cap was now 1/2 inch below cover...when i went to dealer and
    inspected other bikes, i realized i was missing 2 mounts...
    dealer made calls to Buell...was told export models needed
    to meet additional regulations..so...earlier models don't have
    mount...
    F.I. Woes...e@mailed Dynojet..new module is used in conjunction
    w/ stock module..no price yet...
    New V & H carbon fibre due this week...wonder how bad it will
    run now?
    Last trip to dealer cost me $260 for speeding ticket testing
    the new tank and pump...anyone have a fix for the wildly
    optimistic speedo...shows 140 @ 6000..don't feel it..think
    maybe 125 - 130...anyone?
    Carbon cover is $450..chin spoiler $325..nothin' weighs
    less...costs less too!



    -----Original Message-----
    From: Leif Fleming [mailto:lfleming@vanceandhines.com]
    Sent: Tuesday, February 02, 1999 6:46 PM
    To: Woodard, Chris
    Cc: etejeras@vanceandhines.com
    Subject: Re: 1999 Buell X-1


    Dear Sir:
        We just received an X1 yesterday, the preliminary dyno result passed
    across my desk today. At 3,500 RPM our slip on produced 10 more ft.lbs
    over stock, and 8 more horsepower, maintaining this result throughout
    the rev range. R&D will continue throughout the week as the biggest
    problem is recalibration of the fuel injection. As the results are being
    finalized I will have a dyno sheet for you at a later period. Please
    be patient.
        Your message has been forwarded to my supervisor, Ed Tejeras, at
    extension 122.

            Leif Fleming
            Sales ext 132



    New Stuff

    I got my "The Road Ahead" newsletter from Buell today.
    Says they have a carbon fiber tank cover P# 61598-99Y
    and chin fairing ready to go. No prices shown. I am
    waiting for the right combination of performance parts
    before I buy parts for looks though.

    X1 Frame Defect

    X1 owners should check the front most section of the
    tank cover for missing frame tabs. What? Yes, my
    frame is missing two metal tabs that all the other
    X1s in the dealership have. They are about 1 inch
    wide and 1 inch tall. These tabs are welded to the
    top of the frame. The tank cover has bolts that run
    through the cover and through the tabs. These tabs
    keep the front of the fuel cell and its cover from
    bouncing up and down at certain RPMs. My tabs are
    missing and the entire fuel cell assembly bounces off
    the frame at low RPMs. My dealer is having a machine
    shop fabricate something to fix the problem, and Buell
    is going to reimburse them. I have an earlier X1,,, #286.



     -----Original Message-----
     From: Chris
     Sent: Friday, January 29, 1999 1:48 PM
     To: sales@vanceandhines.com
     Subject: 1999 Buell X-1


     Hi sales,

     I have a 1999 Buell X1 Lightning that I would like to purchase some
     performance parts for.

     Are you developing any performance parts for the 1999 Buell X1
     Lightning?  If so what are they and when do you expect them to
     be available?

     Thanks

    -----Original Message-----
    From: Leif Fleming [mailto:lfleming@vanceandhines.com]
    Sent: Friday, January 29, 1999 6:48 PM
    To: x1-rider@usa.net
    Subject: Re: 1999 Buell X-1


    Dear Sir:

    We currently have our 1999 X1 products in stock, ready to ship.
    These are aluminum slip ons at $295.00. We are still awaiting our
    carbon fiber which will be $410.00

    Thank you for your interest in Vance and Hines Racing
    Leif Fleming ext 136
    Sales



     Hi, I am looking for performance parts for my 1999 Buell X1 Lightning.
     Does Dynojet have anything available yet?

     Thanks,

     Chris

    Dynojet is currently developing a Power Commander Fuel Injection Box
    for the X-1.  The release should be around beginning of April.
    If I can be of any further assistance, feel free to email me or call
    me at the number below.

    John Marcella   Technical Support

    johnny@dynojet.com  | 702 399 1423 ext. 110/ 702 639 1110
    DYNOJET RESEARCH, INC. | http://www.dynojet.com
    Increased Horsepower and Enhanced Performance...



     Chris wrote:

     I am looking for performance parts for my 1999 Buell X1 Lightning.

     Do you have anything available?

     Thanks,

     Chris

    Chris!! thanks for your email!! Got some great stuff for the X-1!!!
    Our Racewinder Ram Air is just being finsished up for the X-1 and
    will be ready to ship this week. We also have the Streetgfighter Race
    pipe a complete race header for the X-1. We also carry Vance and Hines
    for the X-1 also. I'll send over some attachments for you!! Get back
    with me with any questions on pricing, performance etc. thanks much!!!

    Also our pipes are available with Jet Hot coating [I almost forgot
    to tell you!!!} We are working on carbon fiber trim pieces that will
    go on the "tank" and make it look "factory" after installing the
    Racewinder. the Force sidewinder/Forcewinder will be ready shortly
    too for the X-1. as we are working on the sensor cover now!! should
    be a good year for the X-1 owners!! Dynojet's remappping kit should
    be avail shortly too!!! Stay tuned!!!!


    Johnny Lightning Force Motor Products Inc.



    Racewinder



    Streetfighter



    Chris thanks for your email [ again] !! All we have right now is
    the dyno testing we've done on the '98's as we'll be doing the
    '99 's nest week if the Buells stock sensors will cooperate. You
    [WE] are gonna need a reamapping kit from Dynojet [ email Mike
    Daniels at Dynojet for info] in order to get the '99 fuelies to
    run right with aftermarket modifications. I will guarantee you
    this though, our Streetfighter Race Pipe will out perform
    all of the exhausts on the market on the carb Buells and the
    same specs were incorporated into the fuelie pipes!!! Wait for
    the nest issue of Battle2win to come out in about 3 weeks and see
    what they have to say about it. but we can make you a smokin deal
    on a Vance and Hines if you'd like!!! Keep in touch and we'll keep
    you posted on the latest developments in the Buell
    exhausts. Thanks again for your interest , , , and
    keep in touch!!! Johnny

    Lightning Force Motor Products Inc.


    Chris!!! Sorry this took so long gettin back to you but our seever
    went down and all our mail got messed up but I think everything is
    going ok now!!! Form our experience with the x-1s so far you WILL
    need a remapping kit for the fuel injection to make any aftermarket
    mods to the intake or exhaust work properly!! Dynojet, and I hear
    Vance and Hines are both working on such kits and should be avail
    able shortly. Meanwhile are Racewinder RAM AIR and the Forcewinder
    are just being finished up to work on the fuel injection. We've done
    the X-1 pipe but without being able to recalibrate so much acn be
    expected! But with the kits WATCH OUT!! Johnny
    LIGHTNING fORCE mOTOR pRODUCTS iNC.



    Cobra Engineering ID#181
    4915 East Hunter
    Anaheim, CA 92807
    714-779-7798
    Exhaust, cruiser products, fenders, etc.
    http://www.cobrausa.com

    Cycle Shack, Inc. ID#182
    1104 San Mateo Avenue
    S. San Francisco, CA 94080
    415-583-7014
    Exhaust pipes and mufflers for
    Harley-Davidson

    D & D Exhaust ID#183
    1775 Hurd Drive
    Irving, TX 75038
    972-550-6096
    Exhaust Systems

    Indigo Sports, Inc. ID#184
    207 Banks Station
    Fayetteville, GA 30214
    770-719-3800
    Exhaust systems, brake lines,
    specialty fasteners, foot controls

    Micron North America, LTD ID#121
    2360 Ogden Avenue
    Downers Grove, IL 60515
    630-963-5200
    High performance exhausts and
    slip on canisters

    Muzzy's ID#186
    63017 Sherman Road
    Bend, OR 97701
    503-385-0706
    Manufacturer of titanium and stainless
    exhaust systems for motorcycle

    Run Roader ID#187
    9500 Lucas Ranch Rd.
    Cucamonga, CA 91730
    909-944-0890
    Exhaust Systems

    Samson Motorcycle Products ID#188
    220 South Loara Street
    Anaheim, CA 92802
    714-518-2480, 800-373-4217
    Exhaust Systems

    Sudco International Corp. ID#189
    3014 Tanager Avenue
    Commerce, CA 90040
    213-728-5407
    Carburetors, exhaust, replacement parts

    SuperTrapp Industries, Inc. ID#190
    4540 West 160th Street
    Cleveland, OH 44135
    216-265-8400
    Exhaust systems and mufflers

    Two Brothers Racing ID#191
    1715 East Wilshire Avenue, Unit 701
    Santa Ana, CA 92705
    714-550-6070
    Exhaust systems, blue jeans and more

    Vance & Hines Racing ID#192
    14010 Marquardt Avenue
    Santa Fe Springs, CA 90670
    310-921-7461, 800-592-2529
    Motorcycle performance products

    Yoshimura R & D of America ID#193
    4555 Carter Court
    Chino, CA 91710
    909-628-4722
    Motorcycle exhaust system and racing parts
