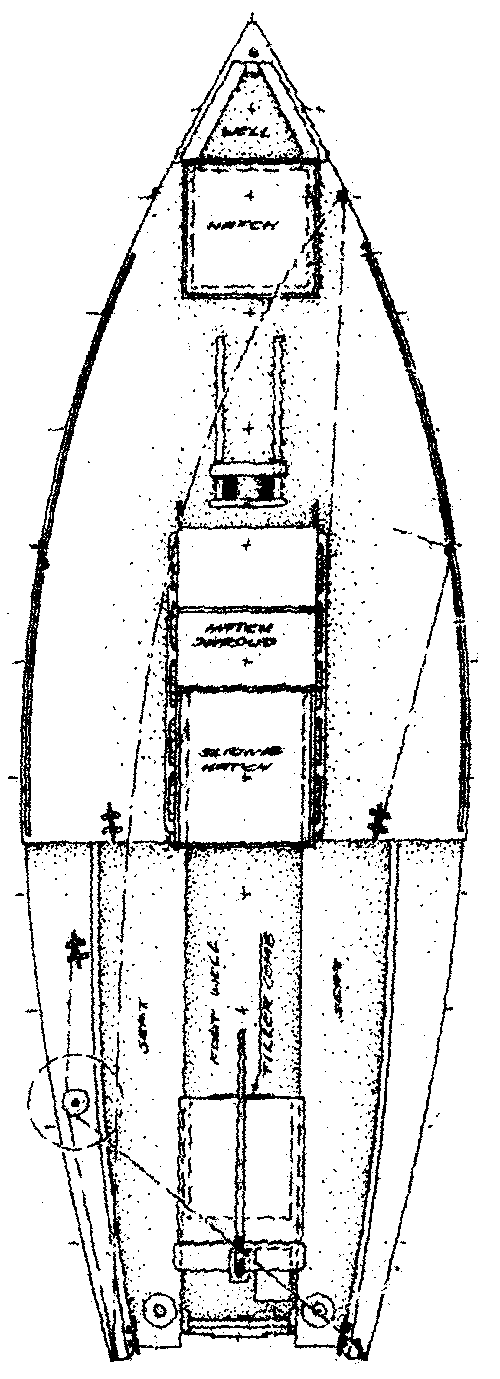

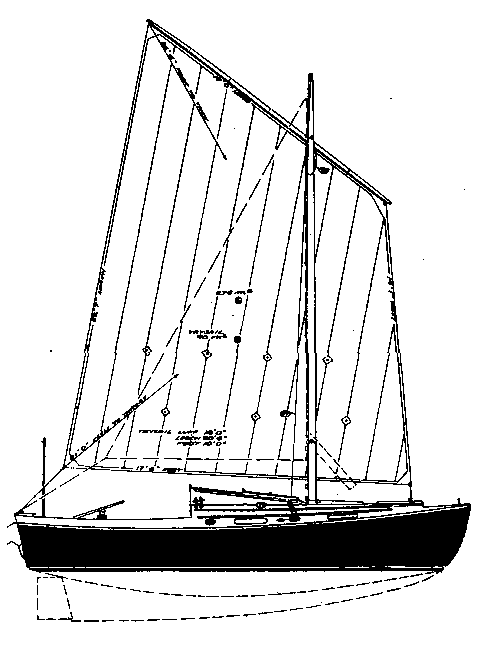

SEABIRD´86 ORIGINAL

LOA:              23´     (7,01m)
LWL:              21´9´´ (6,63 m)
BEAM:            7´9``   (2,36 m)
DAUGHT:       2´6´´   (0,75m)
DISPL.:       4100 lbs   (~1700kg)
SAIL:             276 ft²   (~25m²)

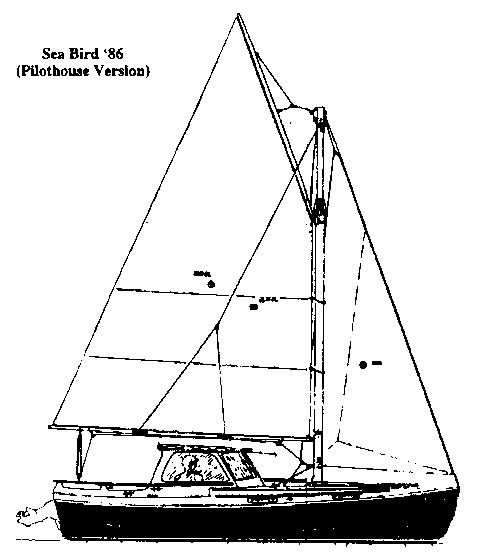

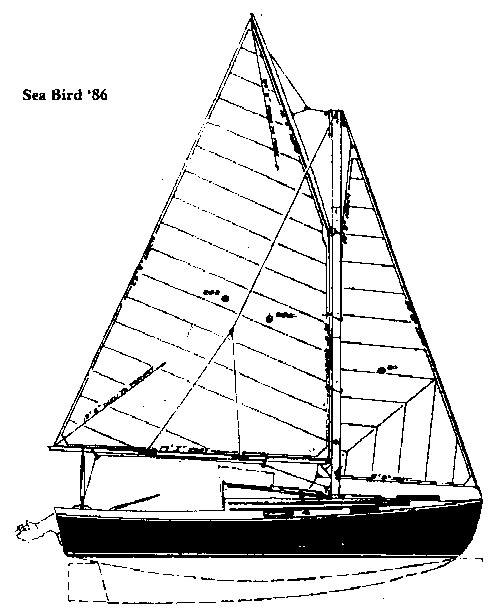

In 1996 Phil Bolger has drawn a gaffriged-, in 1997 a dog- house version, both with an unstayed alumast and the same hull.
Plan set includes all versions and are available from:

Phil Bolger & Friends, Inc.
P.O. Box 1209, 29 Ferry St.
Gloucester, MA 01930, USA
Fax: 978-282-1349
