For Response:WEIGHT

USING AN EQUATION OF THE FORM:

Y = A+B * LENGTH+C * RADIUS

+D * LENGTH^2+E * RADIUS^2+F *LENGTH * RADIUS

CHANGE

ACCEPT

ENTERA:1.57

ENTERB:-6.28

ENTERC:-.785

ENTERD:6.28

ENTERE:0

ENTERF:3.14

VIEW INDIVIDUAL RESPONSE SURFACE

VIEW INDIVIDUAL CPK SURFACE

VIEW INDIVIDUAL YIELD SURFACE

VIEW COMPOSITE YIELD SURFACE

OPTIMUM OPERATING POINT / COMPOSITE Cpk

QUIT

SURFACESURFACE

LENGTHLENGTH
AXIS

RADIUSRADIUS
AXIS

CLIPBOARDCLIPBOARD

HARDCOPYHARDCOPY

Q U I TQ U I T

YIELDSURFACE forRESI STOR

.48
1.9

.49

.5

.51

.52

RADIUS

1.95

2

2.05

2.1

LENGTH

0

10

20

30

40

50

60

70

80

90

100

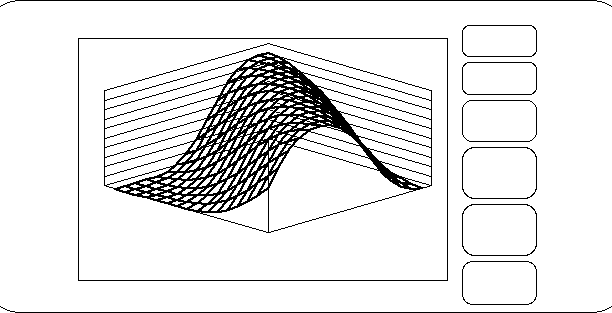

FIGURE 13. YIELD SURFACE FOR RESISTOR. THE USER HAS OPTIONS,
LISTED ON THE RIGHT HAND SIDE, INCLUDING PRINTING THE SURFACE
("HARDCOPY"), AND ROTATING THE SURFACE ("REVERSE AXIS").

REVERSE

REVERSE

ANOTHER
