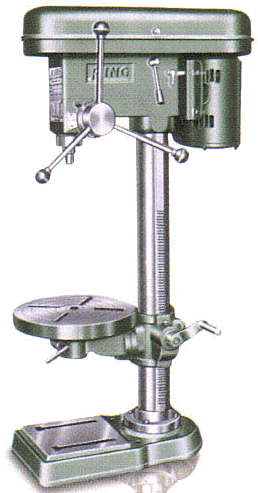

KSD Series Heavy Duty Drilling Machine



Summary



KSD Series heavy duty drilling machine provide you best accuracy and great value.

Key Benefit



  • Precision
  • High Speed
  • Affordable



SPECIFICATION

Type KSD-340 KSD-34M KSD-420 KSD-42H-200
Center Of Spindle to Column 165mm 165mm 220mm 220mm
Spindle Travel 80mm 80mm 125mm 200mm
Taper Of Spindle Nose J.T.No.6 M.T.No.2 M.T.No.3 M.T.No.3
Max,Distance spindle to Table Square 470mm 560mm 625mm
Round 440mm 530mm 585mm 870mm
Max,Distance Spindle to Base 630mm 710mm 830mm 1080mm
Surface of Table Square 230x230mm 230x230mm 315x300mm
Round 320mm 320mm 400mm 400mm
Spindle Speeds R.P.M. 50Hz 455/875/1460/2500 455/875/1460/2500 130/230/275/360/475/490/1075/1300/1940 130/230/275/360/475/490/1075/1300/1940
60Hz 550/1050/1750/3000 550/1050/1750/3000 160/280/330/430/575/590/1290/1560/2330 160/280/330/430/575/590/1290/1560/2330
Drilling Capacity 13mm 19mm 25mm 25mm
Motor 1/2 HP 4P 1/2 HP 4P 1HP 3PH 4P 1 HP 3PH
Machine Height 1025mm 1127mm 1370mm 1700mm
Machine Weight 63KG 64KG 107KG 125KG
