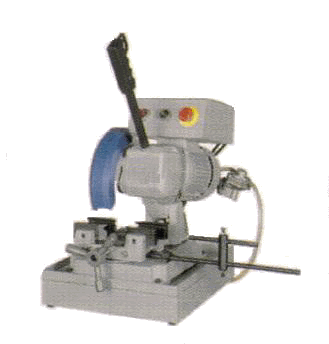

KCS Circular Saw series provides you a various kinds of selection, ideal for metalworking. |
|
Key Benefit |
||
|
|
|
|
SPECIFICATION
| Type | KCS80 | KSC100 | KCS120 | ||
| Cutting Capacity | 90° | Solid pipe | 30 | 40 | 80 |
| Hollow pipe | 65 | 75 | 100 | ||
| Square pipe | 64x65 | 65x65 | 90x90 | ||
| Rectangle pipe | 80x65 | 90x50 | 115x70 | ||
|
45° |
Solid pipe | 25 | 35 | 70 | |
| Hollow Pipe | 60 | 65 | 90 | ||
| Square pipe | 60x60 | 58x58 | 80x80 | ||
| Rectangle pipe | 65x50 | 70x50 | 85x70 | ||
| Blade electric motor | HP | 1 | 1.3 | 2.2 | |
| Oil bath reduction gear box | rappporto | 27:1 | 33:1 | 34:1 | |
| Maximum blade size | Ømm | 225 | 250 | 315 | |
| Blade revolution speed | R.P.M. | 52 | 42 | 42/84 | |
| Vice Opening | mm. | 80 | 100 | 120 | |
| Weight of the Machine w/o Stand | Kg. | 85 | 140 | ||
| Weight of the machine with stand | Kg. | 40 | 105 | 165 | |
| Dimensions of the machine w/o stand |
mm. (LxWxH) |
900x550x600 | 1100x700x800 | ||
| Dimensions of the machine with stand |
mm. (LxWxH) |
900x380x500 | 900x550x1360 | 1100x700x1560 | |
| Standard equipment |
|
||||
