[Home Pages][Products][On/off type Magnetic Chuck]

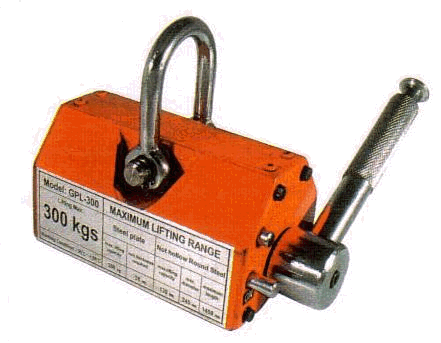

GPL switch type permanent lifting magnetic chuck



Summary



    GPL switch type permanent magnetic chuck are suitable for carriage various iron workpieces everywhere.

Key Benefit



  • No power needed
  • Super attach force
  • Easy operation



SPECIFICATION

Model

Capacity

(KG)

 Chucking face Dimension Max Lifting Range Safety Cofficient
Steel Plate Not Hollow Round Steel
B L H B1 L1 H1 B2 H2 H3 Max lifting capacity(KG)

Minium Thickness

required(mm)

 Max lifting capacity(KG) Max Diameter(mm) Max Length(mm)
GPL-300 300 90 160 93 100 220 140 56 46 12 300 26 130 245 1450 x3.3
GPL-600 600 120 225 115 130 285 160 85 57 16 600 32 260 345 1950 x3.3
GPL-1000 1000 175 250 160 185 520 235 110 95 20 1000 42 445 445 2450 x3.3
