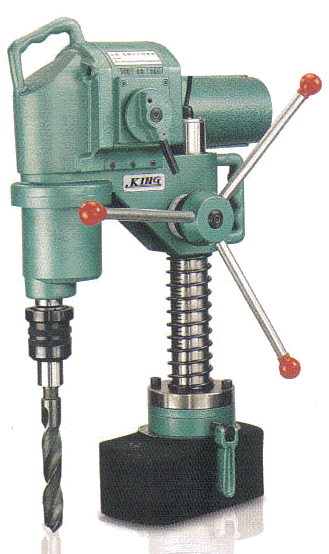

KMD Series Magnetic Drill Machine



Summary



    KMD Series Magnetic Drill Machine give you most freedom to deploy at where ever you want.

Key Benefit



  • Portable
  • Simple Control
  • Light Weight



SPECIFICATION

Type King-25TP
Drilling Capacity 8mm~25mm
Tapping Capacity M8~M25
Speed Of Spinde 83/388/746 RPM
Spindle Stroke 180mm
Motor 2 HP
Power AC 220V 50/60Hz
Electro-Magnet Dimension 310*150mm
Drilling Sleeve 3 PCs
Tapping Chuck 1 PC
Weight 52 KG
Height 720 mm
