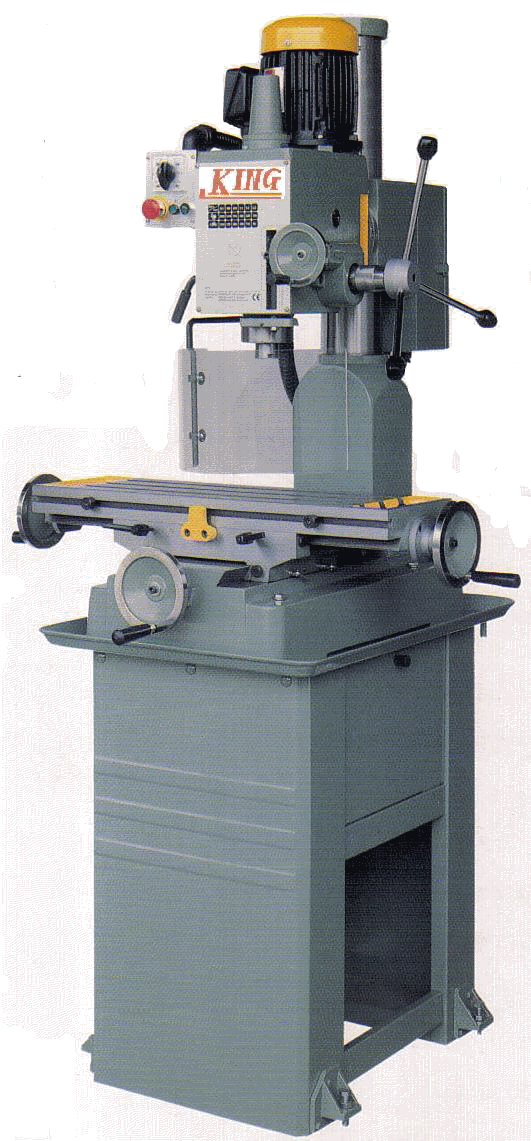

KDM Series Drilling and Milling Machine are design to wark hard for you. |
|
Key Benefit |
||
|
|
|
|
SPECIFICATION
| MODEL | KDM-40 | KDM-40F | |
| DRILLING CAPACITY | CAST IRON | 40mm(1 9/16") | 40mm(1 9/16") |
| STEEL | 32mm(1 1/4") | 32mm(1 1/4") | |
| FACE MILLING CAPACITY | 76m(3") | 76mm(3") | |
| END MILLING CAPACITY | 32mm(1 1/4") | 32mm(1 1/4") | |
| SPINDLE TAPER | MT#3 or R-8 | MT#3 or R-8 | |
| SPINDLE NOSE TO TABLE | 480mm | 580mm | |
| COLUMN DIA. | 110mm | 115mm | |
| QUILL DIA. | 75mm | 75mm | |
| QUILL TRAVEL | 120mm | 120mm | |
| SWING | 550mm | 550mm | |
| HEAD SWIVEL | 90° R&L | 90° R&L | |
| MAIN MOTOR | 0.75 P.S. 1HP | 0.75 P.S. 1HP | |
| SPINDLE SPEEDS | 50Hz | 50/100/170/370/125RPM(4P) | 50/100/170/370/1250RPM(4P) |
| 60Hz | 60/120/200/450/850/1500RPM(4P) | 60/120/200/450/850/1500RPM(4P) | |
| TABLE SURFACE | 730 * 210mm | 585 * 190mm | |
| CROSS TRAVEL OF TABLE | 285mm | 210mm | |
| OVERALL HEIGHT | 1090mm | 1880mm | |
| T-SLOT SIZE | 16mm | 14mm | |
| CABINET STAND | 830*570*240mm | ||
| MEASUREMENT | 780*850*1165mm | 740*780*1955mm | |
| N.W/G.W | 310KGS/340KGS | 325KGS/360KGS | |
Subject might be change without notice
