512 BB
(1976-1981)

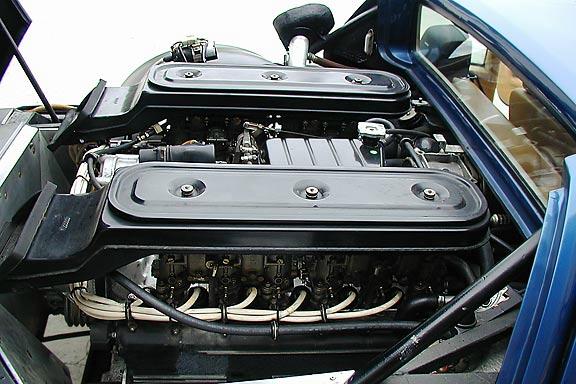

Number of cylinders and arrangement:
12 in 180° V.

Bore and stroke:
82 x 78 mm.

Unitary and total capacity:
411.84 / 4,942.1 cc.

Position:
Rear longitudinal.

Cylinder block and head:
Light alloy.

Compression ratio:
9.2:1.

Max. power output:
340 bhp at 6,800 rpm; 68 bhp/litre.

Timing gear:
2 valves per cylinder, 2 overhead camshafts.

Fuel feed:
4 Weber 40 IF3C carburettors.

Ignition:
Single, coil-ignition.

Clutch:
Dry, twin-plate.

Gearbox:
5 speeds + reverse.

Differential:
Self-locking.



Type and material:
Tubular.

Front suspension:
Independent, transverse parallelograms, coil springs.

Rear suspension:
Independent, transverse parallelograms, coil springs.

Brakes:
Ventilated discs, vacuum servo.

Steering:
Rack and pinion.



Fuel tank:
Two 110-litre tanks.

Cooling system:
1 front radiator.

Length, width and max. height:
4,400 / 1,830 / 1,120 mm

Wheelbase and front/rear track:
2,500 / 1,508 / 1,572 mm.

Tyres:
Michelin 240-55 VR 415 TRX.

Weight empty:
1,580 kg.


Top speed:
283 km/h.
