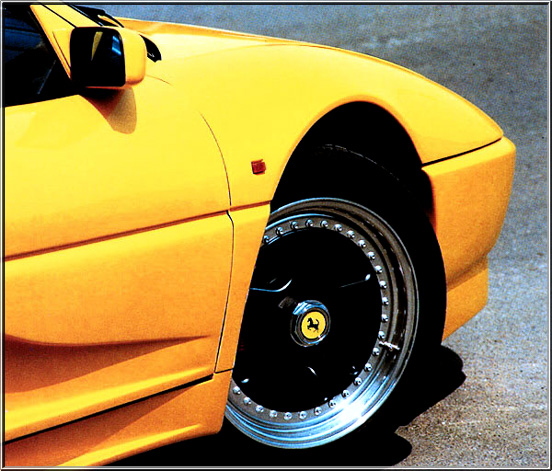

348 TB Zagato Elaborazione

1991-1992

Number of cylinders and arrangement: 8 in 90o V   Bore and stroke: 85 x 75 mm   Unitary and total displacement:  425.62 / 3,405 cc   Position: Rear-mounted, longitudinal    Cylinder block and head:  Light alloy   Compression ratio: 10.4:1    Max. power output: 300 bhp at 7,200 rpm; 88 bhp/litre

Timing gear: 4 valves per cylinder, 2 overhead camshafts   Fuel feed: Bosch electronic injection   Ignition: Bosch static

Clutch: Dry dual-plate    Gearbox: 5 speeds + reverse   Differential: ZF self-locking   Type and material: Stress-bearing steel structure with various sections, and tubular rear sub-frame   Front suspension: Double wishbone with transverse arms, coil springs and telescopic gas dampers   Rear suspension: Double wishbone with transverse arms, coil springs and telescopic gas dampers

Brakes: Ventilated discs, 4-piston callipers, dual high pressure circuit, serco assist, ABS   Steering: Rack and pinion   Fuel tank: 95 litres   Cooling system: 2 rear side radiators   Wheelbase and front/rear track: 2,450 / 1,502 / 1,578 mm   Weight empty: 1,508 kg   Tyres: Front 215-50 ZR 17, rear 225-50 ZR 17   Top speed: 325 km/h
