Dino 246 GT

1969 - 1974

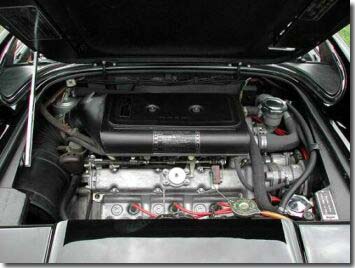

Engine: Rear transverse-mounted 65° V6, light alloy cylinder block and head   Bore & Stroke: 92.5 x 60 mm   Unitary and Total Displacement: 403.20/2,419.20 cc   Compression Ratio: 9:1

Max. Power Output: 195 bhp at 7,600 rpm; 80 bhp/litre   Timing Gear: 2 valves per cylinder, twin overhead camshafts per cylinder bank   Fuel Feed: 3 Weber 40 DCNF/7 carburettors   Ignition: Single plug, coil

Transmission: Dry single-plate clutch, 5-speed gearbox + reverse   Chassis: Tubular   Front Suspension: Independent, double wishbones, coil springs   Rear Suspension: Independent, double wishbones, coil springs   Brakes: Ventilated discs, servo assist.

Steering: Rack and pinion   Cooling System: 1 front radiator   Length: 4300 mm   Height: 1150 mm   Wheelbase and Front/ Rear Track: 2,340/1,425/1,430 mm

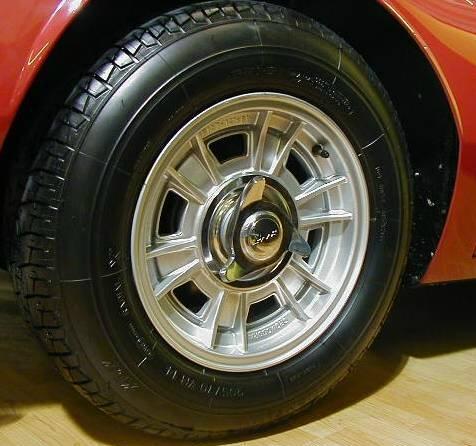

Dry Weight: 1,080 kg   Tyres: 205-70 VR 14   Fuel Tank: 65 litres   Top Speed: 245 km/h
